XAL

ADJUSTABLE DOWNLIGHT
INDOOR LIGHTING
SASSO 100 ADJ_048-2720014S 048-2796317 002-90780

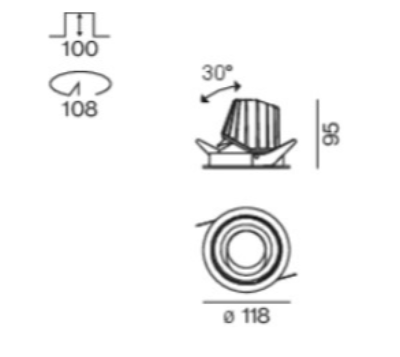

Round recessed adjustable spotlight in die-cast aluminium housing, surface matt silver; 360° rotatable and 30° tiltable. Installation without tools in mounting set due to patented ball catch system; round installation housing; with trim traffic white; suitable for ceiling thickness of 2-25 mm; passive cooling of the LEDs through improved heat sink geometry with COB (Chip on Board) technology for maximum efficiency; no appearance of multiple shadows;

Specification

Power
26.7W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
2370LM
Finishing
WHITE TRIM / SILVER REFLECTOR
IP Rating
IP40
Color Rendering
CRI90
Driver
ON/OFF DRIVER

See more

SPARK
RECESSED DOWNLIGHT
INDOOR LIGHTING

Recessed pin-hole downlight made of aluminium housing with white powder coated finish. Black finish available upon request. Luminaire come with 2 different sizes, 6-8W in Ø63mm and 8-15W in Ø90mm.

LINEALIGHT
SURFACE TRACKLIGHT
INDOOR LIGHTING

Single emission projectors for indoor application. The warm white LED light source with a medium wide flood light distribution is composed of 1 arrayled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed black ral 9005 finish, processed by means of powder coating. The ingress protection degree is IP20; the total weight is of 0.390 kg. The device features protection class II and can be ceiling-mounted. Compliant with the EN 60598-1 standard and its specific provisions.

SPARK
SURFACE MOUNTED DOWNLIGHT
INDOOR LIGHTING

Surface mount cylinder luminaire made of die cast aluminium housing and white powder coated finish. Come with several Color temperature from 2700K to 5000K. IP20

LINEALIGHT
RECESSED DOWNLIGHT
INDOOR LIGHTING
Single emission downlights for indoor application. The warm white LED light source is composed of 1 powerled LEDs . The device body is made of aluminium 6026 and features a embossed white ral 9003 finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.078 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.170 m length. The device features protection class III and can be ceiling-mounted, with a 29 mm diameter hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.
