TRAXON

WALLWASHER

OUTDOOR LIGHTING

PP.W3.913122

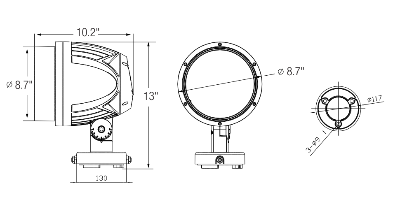

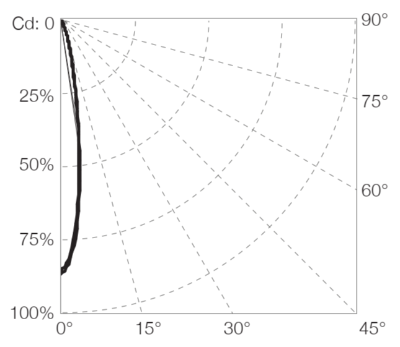

The ProPoint SW 80W Wall Washer is an AC line powered, high brightness luminaire. The luminaire is controllable via DMX512. The system is connected using a daisy chain topology, allowing easy installation to form long run lengths. Remote Device Management (RDM) circuits are built into each luminaire that enables extensive control and monitoring of the entire installation.

Specification

Power

80W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

5440LM

Finishing

ALUMINUM

IP Rating

IP66

Color Rendering

CRI>80

Driver

LINEALIGHT

RECESSED DOWNLIGHT

INDOOR LIGHTING

Single emission recessed downlights for indoor application. The super warm white LED light source with a asymmetric wallwasher light distribution is composed of 1 arrayled LEDs. The luminaire body is made of technopolymer and features a white finish; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP20.

LINEALIGHT

PROJECTOR LIGHT

OUTDOOR LIGHTING

Single emission projectors for outdoor application. The warm white LED light source with a flood light distribution is composed of 1 powerled LEDs. The device body is made of aluminium 6026 and features a embossed black ral 9005 finish, processed by means of open pore anodizing + powder coating; the diffuser is made of extra clear glass. The ingress protection degree is IP65; the total weight is of 0.16 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 1 m length. The device features protection class III and can be wall lights, ceiling or floor-mounted. Compliant with the EN 60598-1 standard and its specific provisions.

LED LINEAR

SURFACE LINEAR LIGHT

OUTDOOR LIGHTING

Luminaire with 45° adjustable head with an opal encapsulation for decent accent lighting. High lumen output up to 1870lm/m in combination with minimalistic design (25.4mm*31mm) makes Xoolum an efficient product. Polyurethane is utilized in Xoolum to make it more resistant to impact from salt water UV-light and solvents. Xoolum is a two in one fixture thanks to the possibility to mount it with an 45° angle. It can be surface mounted or as pendant fixture.
