"Copper Free" Aluminium die cast housing in EN AB-44100 with high resistance against corrosion. Stone wash surface treatment prior to painting process. A4 grade Stainless Steel screws with 2,5-3% molybdenum content which increases the resistance against corrosion. Pre treated Silicone Gaskets. Painting Process: 3 Step Process: 1) Surface treatment with BONDERITE. A heavy metal free chemical surface treatment containing ceramic nano particles giving a cohesive, inorganic and highly dense protective coating. 2) PRE POLYMERIZATION a process of introducing an epoxy primer with excellent characteristics to the paint which also offers very high resistance to oxidation due to its Zinc content. 3) POLYMERIZATION a process with the application of polyester powder with high resistance against UV rays and harsh weather conditions. Resistance test protection for Marine applications for 1200h. Mechanical resistance IK 09 Maximum load capacity 1000 Kg. This luminaire contains built-in LED modules. In case of damage or malfunction please contact the manufacturer to receive additional instructions on how to replace and relative spare parts to order. The LED modules cannot be handled in the luminaire by the end user. This product contains a light source of energy efficiency class: E. LED modules are engineered accordingly to the existing regulations of Lumen Maintenance (LM80) and Technical Memorandum (TM21), where uniformity and quality of the light is 70,000 hours referred to L80 B10 Ta 25 ° C (50,000 hours referable to L80 B10 Ta 40°C). Lifespan of the luminaire min. 50,000 hours at 40°C. Performance Ambient temperature Tq 25°C. Operating ambient temperature range is from -20°C to +50°C. Storage temperature range from -20°C to +60°C.

LED lighting module for installation in the My Circuit system. Optical with double focal lens technology, low glare and high visual comfort. Adjustable by tilting and turning. In the downlight position, the track connector arm is perfectly flush with the product. Casambi version for wireless control.

Luminaire made of aluminium alloy, aluminium and stainless steel. Opal glass. Silicone gasket. Mounting plate with 2 fixing holes ø 5.2 mm · 70 mm spacing, 1 cable entry for mains supply cable up to ø 10,5 mm max. 3 × 1,5@ Plug connection. Connecting terminal 2.5@ Earth conductor connection. LED power supply unit 220-240 V x 0/50-60 Hz, DC 198-280 V. Safety class I, Protection class IP 44, Protected against granular foreign bodies, > 1 mm and splash water. Impact strength IK06. Protection against mechanical impacts < 1 joule, r – Safety mark, c – Conformity mark.

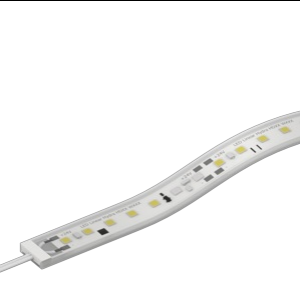

High efficacy LED series. Top bend dot-free flexible light, connectable up to 10m per run, IP67, max custom length 2m for outdoor usage, up to 10m per circuit
