IGUZZINI

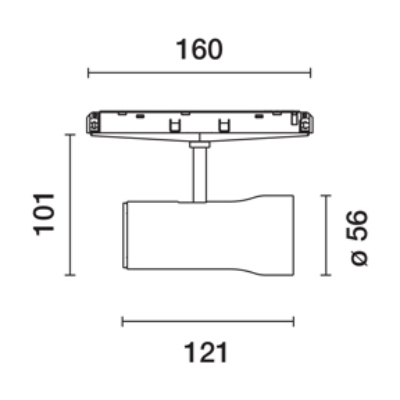

SURFACE MAGNETIC TRACK SPOT

INDOOR LIGHTING

216G .V0

Compact spotlight complete with adapter for installation on low voltage track (48V). The body is made of painted die-cast aluminium, with a passive dissipation system that ensures optimal thermal management.

Specification

Power

13.9W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

924LM

Finishing

BLACK

IP Rating

IP20

Color Rendering

CRI 97

Driver

ON/OFF DRIVER

LINEALIGHT

UNDERWATER LIGHT

OUTDOOR LIGHTING

Single emission submerged for outdoor application. The natural white LED light source with a flood light distribution is composed of 6 powerled LEDs with CCT of 4000 K and a CRI 80; the source luminous flux is 1818 lm, with a 129.9 lm/W nominal luminous efficacy. The device body is made of stainless steel and features a steel finish, processed by means of brushing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP68, IK09.

IGUZZINI

RECESSED LINEAR LIGHT

OUTDOOR LIGHTING

Direct light luminaire, designed to use Warm White monochrome LED lamps, and a flood optic with non-slip glass. Ground-, wall- and ceiling-recessed. Consists of a body and outer casing for installation, to be ordered separately. Extruded aluminium body, with diecast aluminium end caps complete with silicone seals. IP67,IK09.

LINEALIGHT

UP/DOWN WALL LIGHT

OUTDOOR LIGHTING

Single emission uplights for outdoor application. The warm white LED light source is composed of 1 arrayled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a black finish, processed by means of open pore anodizing + powder coating; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP68; the total weight is of 0.5 kg. The power supply cable is included and features a 1 m length. The device features protection class III and can be floor-mounted with an outer casing, code 99856 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.

IGUZZINI

PROJECTOR LIGHT

OUTDOOR LIGHTING

EP55: Spotlight with bracket - Warm White LED - On/Off - Very Wide Flood optic

Life Time: 100,000h - L90 - B10 (Ta 25°C)/Life Time: 100,000h - L90 - B10 (Ta 40°C)/Intervallo temperatura ambiente: from -25°C to 50°C./Number of optical assemblies: 1/Optical assembly Characteristics Type 1:/Light Output Ratio (L.O.R.) [%]: 76/Number of lamps for optical assembly: 1/Lamp code: LED

Floodlight designed to use Warm White LED lamps with a Very Wide Flood optic. Can be installed at ground level, on walls (using screw anchors) and on pole mounting systems. The luminaire consists of an optical assembly/component-holding box and hidden fixing bracket. The optical assembly and front frame are made of die-cast aluminium alloy painted with a smooth finish (grey RAL 9007) or a textured finish (white RAL 9016).
