PROLICHT

PENDANT

INDOOR LIGHTING

410-1502

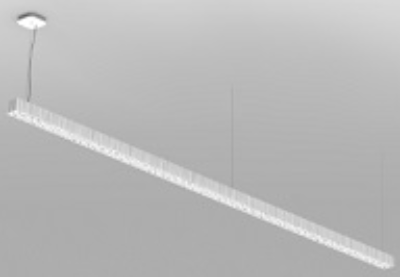

The pendant luminaire SIGN from the familiy SIGN consists of aluminum-extruded profile. The article can be powder coated in 25 colours. The ballast is integrated and allows for an operation with 220-240V (50/60Hz). SIGN (# 410-1502) is dimmable via BUS. The luminaire with direct illumination and corresponds to protection class SK1 at IP20.

Specification

Power

LED 55 W

Color Temperature

4000K

Light Source Type

LED

Lumen Output

8949 lm

Finishing

Crystal white

IP Rating

IP20

Color Rendering

CRI 80

Driver

Driver - on/off, 1-10V, Dali

WE-EF

INGROUND UPLIGHT

OUTDOOR LIGHTING

IP69. IK10+. Stainless steel construction including PCS hardware. Safety glass lens, max. load 5 tonnes. Luminaire can be driven over at low speed. Silicone rubber gasket. Factory-sealed termination chamber with cable gland and 0.5 m of flexible PVC-free cable. Integral EC electronic converter. Advanced thermal management protects LEDs while optimising lumens output. Removable LED boards for upgrading. CAD-optimised optics for superior illumination and glare control. OLC One LED Concept. 20° tiltable and 355° rotatable. 1-10 V analogue dimming or DALI interface available on request. Luminaire installation blockout and sealable junction box included in supply.

LINEALIGHT

WALL LIGHT

OUTDOOR LIGHTING

Single emission wall lights for outdoor application. The natural white LED light source is composed of 1 arrayled LEDs. The luminaire body is made of die-cast aluminium en ab - 46100 and features a white finish, processed by means of open pore anodizing + powder coating; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP65.IK08.

BEGA

INGROUND FOOT LIGHT

OUTDOOR LIGHTING

Inground uplight made of aluminium alloy and stainless steel hosing, Borosilicone glass and silicon gasket. Luminaire, with mounting plate for bolting onto a foundation or onto a connecting housing Mounting plate of stainless steel. IP67,IK10.DIMENSION:(W)270x(H)270x(D)55mm.
