MCI

HANDRAIL LIGHT
OUTDOOR LIGHTING

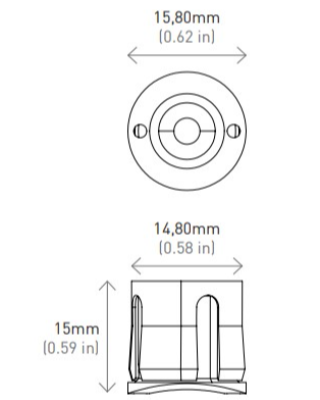

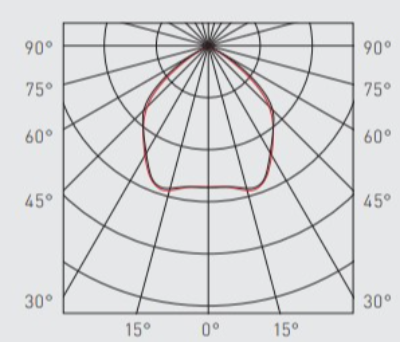

HANDRAIL DOT GEN2_100D

Outdoor handrail light Dot designed to be integrated in new or retrofitted handrails. Easy and quick installation due to snap-in fit system IP66, IK10 and anti-tamper design. Ideal for outdoor applications. Chrome brass unibody dot with polycarbonate lens. IP66, IK10


Specification

Power
1.5W
Color Temperature
2700K
Light Source Type
LED
Lumen Output
174LM
Finishing
CHROME BRASS
IP Rating
IP66
Color Rendering
CRI80
Driver
ON/OFF DRIVER

See more

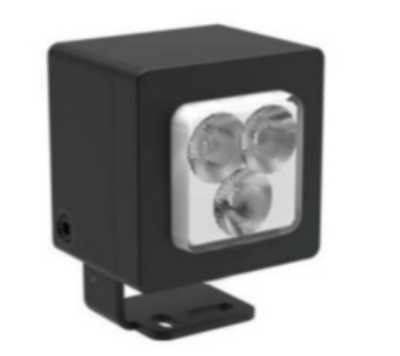

MEYER
SPOTLIGHT
OUTDOOR LIGHTING

Outdoor Spotlight housing made of corrosion‑resistant die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process. Exterior parts are stainless steel, 2 tempered safety glasses: waterproof space for optical film and honeycomb louvres, dark screen print, silicon gasket, closure with 2 stainless steel screws and mounting bracket. IP65 IK08

WE-EF
SURFACE MOUNTED LIGHT
OUTDOOR LIGHTING
Marine-grade, die-cast aluminium alloy. 5CE superior corrosion protection including PCS hardware. Safety glass lens. Silicone rubber gasket. Luminaire is factory-sealed and does not need to be opened during installation. Integral EC electronic converter. Advanced thermal management protects LEDs while optimising lumens output. CAD-optimised optics for superior illumination and glare control. OLC® One LED Concept. Two cable entries. Optional 2200 K version up to max. 1050mA available. To be specified at time of ordering. Luminaire can be mounted for up or down lighting.
FLOS
ADJUSTABLE DOWNLIGHT
INDOOR LIGHTING
Embedded luminaire for LED light source. Remote 220/240V power supply included.Pre-installation frame must be ordered separately. The ingress protection drgree is IP20.
LINEALIGHT
RECESSED DOWNLIGHT
INDOOR LIGHTING
Single emission downlights for indoor application. The warm white LED light source with a medium flood light distribution is composed of 1 arrayled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed white ral 9003 finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.859 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.300 m length. The device features protection class III and can be ceiling-mounted, with a 125 mm diameter hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.
