XAL

ADJUSTABLE DOWNLIGHT
INDOOR LIGHTING

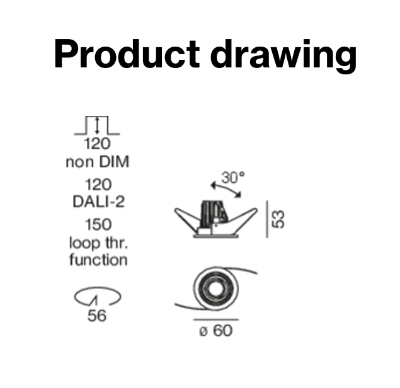

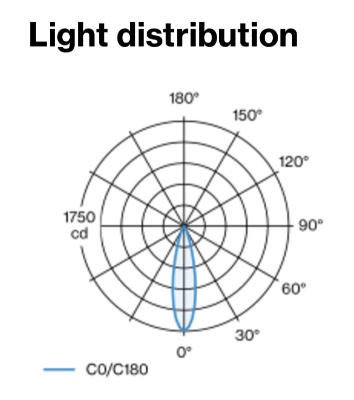

SASSO 40 ADJ_048-2820414M 048-2896318 002-90753

Round recessed spotlight in die-cast aluminium; surface matt silver; 360° rotatable and 30° tiltable; installation without tools in mounting set due to patented ball catch system; round installation housing; with trim jet black; suitable for ceiling thickness of 2-25 mm; passive cooling of the LEDs through improved heat sink geometry; with COB (Chip on Board) technology for maximum efficiency; no appearance of multiple shadows; light colour 2700 K; ≤ 3 SDCM (initial MacAdam); CRI ≥ 90; min. 85%

Specification

Power
6.2W
Color Temperature
2700K
Light Source Type
LED
Lumen Output
389LM
Finishing
BLACK TRIM / SILVER REFLECTOR
IP Rating
IP40
Color Rendering
CRI 90
Driver
DALI DRIVER

See more

LIGHTFORMS
WALL LIGHT
INDOOR LIGHTING
Big Triplane features three-side illumination from a 108mm lensed channel. Extremely efficient, the white opal, acrylic lens is impact-resistant. Individual or continuous row mounting. Remote driver. Available in suspended and surface models.
LINEALIGHT
WALLWASHER
OUTDOOR LIGHTING
Single emission lines for outdoor application. The warm white LED light source with a flood light distribution is composed of 12 powerled LEDs. The device body is made of aluminium 6060 and features a anodised aluminum finish, processed by means of 20 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP68; the total weight is of 1.020 kg. The power supply cable is included and features a 0.250 m length. The device features protection class II and can be floor-mounted with an outer casing, code 99762 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.
LIGHTFORMS
RECESSED LINEAR LIGHT
INDOOR LIGHTING
The Target Line is increasingly becoming a Light Forms classic. Many lighting design opportunities here. All the mounting options, including track. A huge range of LEDil optics (wide, narrow, black, chrome, white..). Integral control gear, in a very compact form. The Target Line can have integrated Linear LED, but the main feature with the Target Line is the precision Low Glare optics. These precision optics allow plenty of lumen range, in a Low Glare, compact package. The aesthetics and size of the Target Line mean its got the correct look and performance for all applications. Control gear is always integral, despite the compact form - and the full range of extras is available - sensors (CP, Simmtronic, Hytronik, Tridonic + Others), emergency, daylight harvesting, Casambi, Power over Ethernet (PoE) & many other integrated additions.

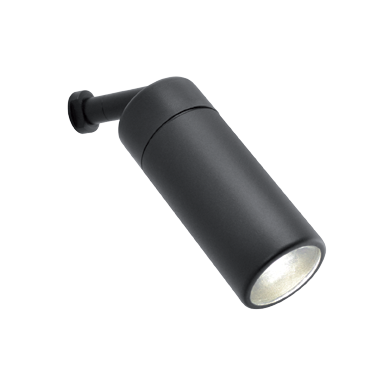

FLOS
TRACKLIGHT
INDOOR LIGHTING

Projector to be installed on threephase track with LED light source. Built-in 220240V, 50-60Hz power supply. All finishes come with black track adapter, arm and back of the head. In the “all white” versions the track adapter, arm and back of the head come in white. The display is always offered in high loss technical black antiglare finish.
