DGA

RECESSED DOWNLIGHT

INDOOR LIGHTING

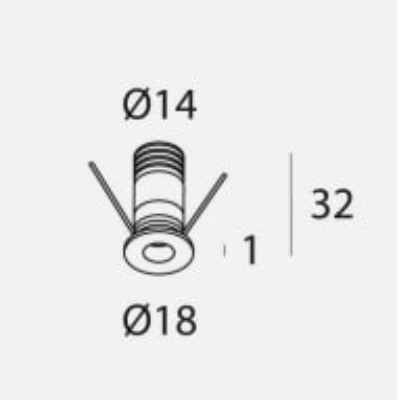

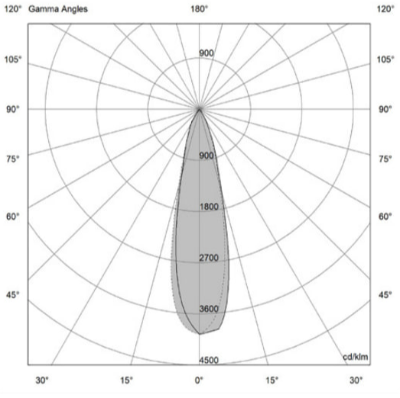

Gemma 18 m

Collection of recessed luminaires for indoor, with strict shapes for maximum integration with architecture. The products of the Gemma series, declined over the years in numerous sizes and applications, appear today, after a sensitive restyling intervention, as small volumes capable of illuminating and characterizing an entire environment.

Specification

Power

Color Temperature

2700K

Light Source Type

LED

Lumen Output

88lm

Finishing

WHITE

IP Rating

IP40

Color Rendering

CRI 90

Driver

0-10V DRIVER

WE-EF

BOLLARD

OUTDOOR LIGHTING

IP66, Class I. IK10. Marine-grade, all-aluminium construction. 5CE superior corrosion protection including PCS hardware. Polycarbonate lens. Silicone CCG® Controlled Compression Gasket. Luminaire is factory-sealed and does not need to be opened during installation. Integral EC electronic converter in thermally-separated compartment. Advanced thermal management protects LEDs while optimising lumens output. CAD-optimised optics for superior illumination and glare control. Two-sided light output versions for 360° symmetric distribution. One-sided light output versions with 'rearward glow' feature. Ideal for pathway lighting applications. Luminaire spacing up to 5-8 m.

XAL

LINEAR DOWNLIGHT

INDOOR LIGHTING

Rectangular recessed multi-downlight made of die-cast aluminium; installation without tools in mounting set due to patented ball catch system; rectangular installation housing; with trim traffic white; suitable for ceiling thickness of 2-25 mm; equipped with four flood round light elements; symmetrical light distribution with precise radiation characteristic, beam angle 49°; high quality reflector with micro-faceted, aluminum-vaporised surface; chrome reflector; UGR ≤ 16; VDU compatible workplace luminaire according to DIN EN 12464-1; luminance above 65° ≤ 3000 cd/m²; passive cooling of the LEDs through improved heat sink geometry; light colour 3000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 90% of luminous flux after 50000 operating hours; energyefficient high power LEDs with very good colour rendering; degree of protection IP20; PC2; incl. converter, non dimmable; through wiring connection box, 3-pole or 5-pole, available as an accessory; accessories are listed separately; light source not replaceable; control gear replaceable by an authorized professional; clank-free;

KOIZUMI

WALLWASHER

INDOOR LIGHTING

Double asymmetric wallwasher downlight made of die cast aluminium frame, aluminium or mirror finish cone. These light distributed so as to expand on both sides effectively illuminates both sides of fixtures as well as assuring illuminance of the base with leaked light, allowing a single light to play three roles. Fewer appliances are required, keeping the ceiling layout clear. Effective in fast-fashion stores, supermarkets or libraries with tall fixtures.
