XAL

LINEAR DOWNLIGHT
INDOOR LIGHTING
UNICO L2 HIGH EFFICIENT_090-7L291C0B31 090-7L2020B

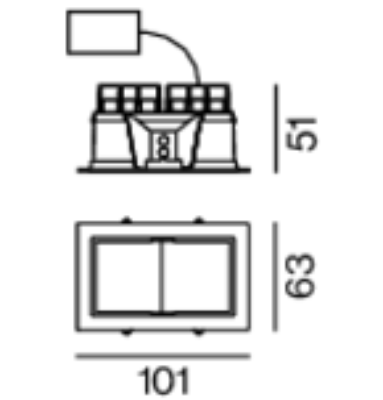

Rectangular recessed multi-downlight made of die-cast aluminium; equipped with two (L2) / three (L3) individually selectable or pre-specified, customised light elements; installation without tools in mounting set with ball catch system; easy electrical installation by means of reverse polarity protected plug-in connections; suitable for ceiling thickness of 2-25 mm; surface powder coated; installation possible in different housings; high-quality reflector with micro-faceted.

Specification

Power
6W
Color Temperature
2700K
Light Source Type
LED
Lumen Output
663LM
Finishing
BLACK TRIM / BLACK REFLECTOR
IP Rating
IP20
Color Rendering
CRI 90
Driver
ON/OFF DRIVER

See more

SPARK
SUSPENDED PENDANT LIGHT
INDOOR LIGHTING

Suspended Pendant light made of aluminium housing and come with 1meter wire mounting accessories. Color finish have white or black. Suitable for residential, office and retail application.

UNIOS
SUSPENDED DOWNLIGHT
INDOOR LIGHTING


WE-EF
SPOTLIGHT
OUTDOOR LIGHTING
IP66. IK07. Marine-grade, all aluminium construction. 5CE superior corrosion protection including PCS hardware. Safety glass lens. Silicone CCG® Controlled Compression Gasket. Luminaire is factory-sealed and does not need to be opened during installation. Advanced thermal management protects LEDs while optimising lumens output. CAD-optimised optics for superior illumination and glare control. Two cable entries. Mains voltage versions, ON-OFF Class I. Integral EC electronic converter. 24VDC low voltage versions, ON-OFF Class III. DALI (only 4W available) Class I. Knuckle permits 340° rotation, forward tilt 73° and backward tilt 90°. Remote 24VDC power supply to be ordered separately.Optical accessories are factory-installed. To be specified at time of ordering.
XAL
FOOT LIGHT
INDOOR LIGHTING

Rectangular wall recessed luminaire made from aluminium black housing. Suitable for wall thickness of 2-25 mm and incl. external converter. High quality reflector with micro-faceted, aluminum-vaporised surface. Asymmetrical light distribution with precise radiation characteristic. Passive cooling of the LEDs through improved heat sink geometry.
