CDN LIGHTING

FUSION FF3

FF3-9302407F-BB

Square recessed ceiling downlight made of die-cast aluminium with black powder-coating finish (RAL 9005) and black reflector; ON-OFF Driver; LED 7W; measurement 98mm x 45mm; ceiling cutout of 90mm x 37mm with a narrow mounting trim; luminaire's weight is approximately 180g; CCT 3000K with an LED Output of 650lm; high color rendering at an index of CRI90; after a lifetime of 50000h min. 80% of the luminous flux with energy efficient OSRAM LED Chips; 5 years warranty; narrow beam characteristic with 24° beam angle; lighting perfectly suitable for reading, writing as well as computer and control work according to DIN EN 12464-1 (UGR<10); degree of housing protection according to DIN EN 60529 (IP20)

Floodlight designed to use Warm White LED lamps with a Super Spot optic. Can be installed at ground level, on walls (using screw anchors) and on pole mounting systems. The luminaire consists of an optical assembly/component-holding box and hidden fixing bracket. The optical assembly and front frame are made of die-cast aluminium alloy painted with a smooth finish (grey RAL 9007) or a textured finish (white RAL 9016).

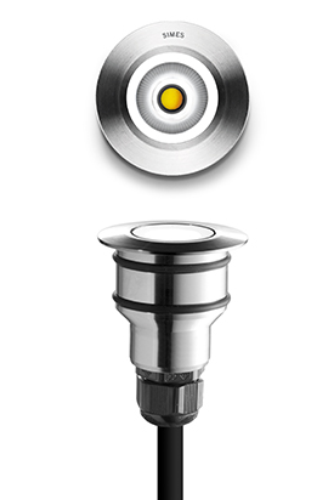

The in-ground uplighter range is designed to fulfill the demands of sophisticated lighting projects. Uplight 250 is equipped with the newly developed Tight Lock mechanism. This allows the orientation of the reflector to be changed without having to open the luminaire housing. With this innovation the risk of water ingress during the installation of the luminaire is eliminated. The stainless steel trim blends harmoniously with the flooring. In addition, precise reflectors feature excellent glare control.

An innovative patented optic realizes a light blade that, from a single LED source, draws a 360 ° light profile. A perfect tool for architectural lighting that emphasizes with high effciency the different opening profiles
