BEGA

WALL LIGHT
OUTDOOR LIGHTING
31 228

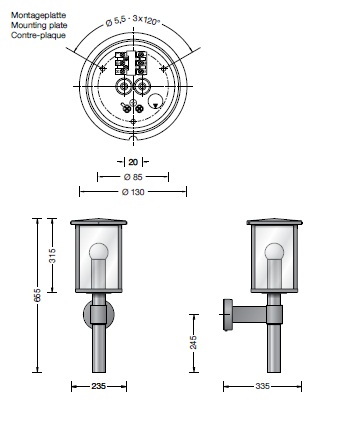

Luminaire made of copper and bronze alloy Crystal glazing. Wall mounting with a mounting plate made of stainless steel, Steel grade number 1.4301. Mounting plate with 3 fixing holes ø 5.5 mm. Angle 120° · Pitch circle ø 85 mm, 2 cable entries for through-wiring of mains supply cable ø 7-10,5 mm, max. 3 G 1.5@ Plug connection. Connecting terminal 2.5@ Earth conductor connection. LED power supply unit 220-240 V x 0/50-60 Hz. DC 176-264 V. Safety class I, Protection class IP 44, Protected against granular foreign bodies, > 1 mm and splash water, r – Safety mark, c – Conformity mark.

Specification

Power
LED 8W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
357 lm
Finishing
Eco Classic
IP Rating
IP44
Color Rendering
CRI>80
Driver
ON/OFF, 1-10V, DALI

See more

FORMALIGHTING
ADJUSTABLE DOWNLIGHT
INDOOR LIGHTING
The Spotify Concave Round series is versatile downlights with high-definition optics and advanced LED technology delivering optimal visual comfort. Available in Dia 76 and 100 mm, trim and trimless versions with tools-free interchangeable optics accessories, it is fully adjustable with vertical tilt 0°-35° inside the ceiling level and rotates 355°.Developed as an ECO design for the circular economy, with its modularity, interchangeable optics and accessories, and tool-free mounting.Application areas: Highend residential and retail projects, hotels, museums, and galleries. The color temperature avaiable 2700k,3000k,3500k and 4000k.
FLOS
RECESSED DOWNLIGHT
INDOOR LIGHTING
LED lighting module, with low glare, to be inserted in the recessed frames (not included), installation through a bayonet system with interchangeable spots. Available in one-light versions and groups of two and four lights. Driver not included, the driver has to be directly connected to the embedding frames.
LED LINEAR
LED STRIP
INDOOR LIGHTING

ULTIMA was designed with miniaturisation, integration and sustainability in mind. It is based on two master technologies: CSP LEDs and NanoRay optics. The result is an extremely small luminaire that offers the same optical options as much larger systems without compromising on light quality, as illustrated by an UGR <13 and a high colour consistency over angle.

MEYER
PROJECTOR LIGHT
OUTDOOR LIGHTING
Housing made of die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, dark screenprint, silicon gasket, closure with 4 stainless steel screws, wall box: 2 drilled holes Ø 7 mm, spacing 110 mm, cable entry 7 – 10 mm, for recessed or surface mounted cable, tilt range: 200°, cable gland: M20, connecting terminal: 3 pole, highly efficient aluminum reflector with satin finish, integral driver (AC/DC), CRI > 80, max 2 SDCM, service life L90/B10 > 50.000 h, Beam angle (fwhm): 92° / 108°, luminous flux: 2870 lm, wattage: 26 W, delivered lumens 110 lm/W, protection type IP67, protection class I, impact resistance IK08, windage area 0,035 m², dimensions (L×H×W): 183 × 70 × 183 mm, weight 3.4 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE and ENEC marks. Customized solutions and modifications are possible: Special ral, db or ncs colours as polyester powder coat, luminaires in 2700 K and other colour temperatures and versions for high ambient temperature.
