LUCE & LIGHT

Luminaire made of copper and stainless steel. Opal glass with screw neck. Silicone gasket. Wall mounting with a mounting plate made of stainless steel, Steel grade number 1.4301. Mounting plate with 2 fixing holes ø 5.5 mm · 70 mm spacing, 1 cable entry for mains supply cable up to ø 10,5 mm max. 3 × 1,5@ Connecting terminal 2.5@ with plug connection. Earth conductor connection. LED power supply unit 220-240 V x 0/50-60 Hz. DC 176-264 V. Safety class I. Protection class IP 44. Protected against granular foreign bodies, > 1 mm and splash water Impact strength IK04, Protection against mechanical impacts < 0.5 joule r – Safety mark, c – Conformity mark.

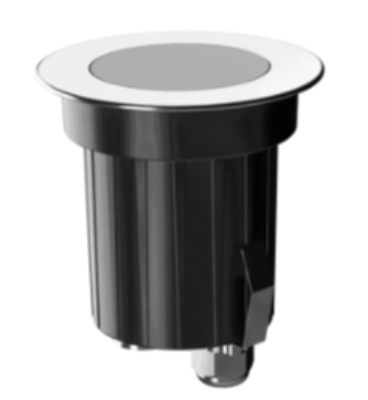

Linear recessed walk-drive over uplighters with trim in stainless steel (AISI 316) and light housing in extruded aluminium. Light trim inclusive of toughened safety glass, weatherproof durable silicone and external screws of stainless steel. Thermoplastic recessed box included additional recessed box for installation in concrete available upon request. Equipped with hard wire rubber cable.

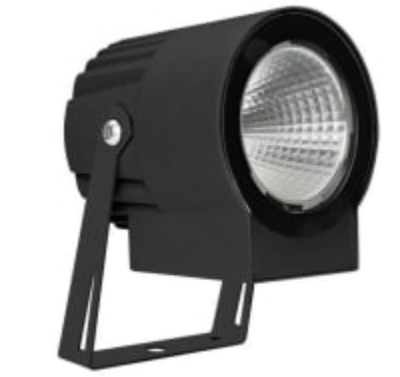

projector for outdoor applications; surface mounted (ceiling, wall, ground, spike); Power consumption: 3,5W; Power supply: 24Vdc; Lumen output at source: 488 lm (3000K, 5W, CRI 80); Delivered lumen output: 352 lm (3000K, 34°, 5W, CRI 80); 1 power LED, 1/4 ANSI BIN, 50 000h L90 B10 (Ta 25°C); LED colour: 3000K; Optics: 5°: optical system consisting of a high-efficiency TIR lens combined with a high-quality technical filter; CRI Colour Rendering Index: 80;

Round recessed mounted downlight made of die-cast aluminium with white powder-coating finish (RAL 9016) and white reflector; ON-OFF Driver; measurement Ø110mm; narrow mounting trim with a cutout of Ø100mm; luminaire's weight is approximately 420g; CCT 3000K with an LED Output of 1100lm; high color rendering at an index of CRI90; after a lifetime of 50000h min. 80% of the luminous flux with energy efficient CITIZEN LED Chips; 5 years warranty; degree of housing protection according to DIN EN 60529 (IP54)
