BEGA

WALL LIGHT

OUTDOOR LIGHTING

31 008

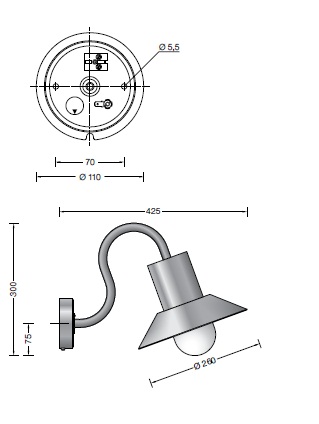

Luminaire made of copper and stainless steel. Opal glass with screw neck. Silicone gasket. Wall mounting with a mounting plate made of stainless steel, Steel grade number 1.4301. Mounting plate with 2 fixing holes ø 5.5 mm · 70 mm spacing, 1 cable entry for mains supply cable up to ø 10,5 mm max. 3 × 1,5@ Connecting terminal 2.5@ with plug connection. Earth conductor connection. LED power supply unit 220-240 V x 0/50-60 Hz. DC 176-264 V. Safety class I. Protection class IP 44. Protected against granular foreign bodies, > 1 mm and splash water Impact strength IK04, Protection against mechanical impacts < 0.5 joule r – Safety mark, c – Conformity mark.

Specification

Power

LED 8W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

432 lm

Finishing

Eco Classic

IP Rating

IP44

Color Rendering

CRI>80

Driver

ON/OFF, 1-10V, DALI

XAL

LINEAR DOWNLIGHT

INDOOR LIGHTING

Rectangular recessed multi-downlight made of die-cast aluminium; installation without tools in mounting set due to patented ball catch system; rectangular installation housing; with trim jet black; suitable for ceiling thickness of 2-25 mm; equipped with four flood round light elements; symmetrical light distribution with precise radiation characteristic, beam angle 49°; high quality reflector with micro-faceted, aluminum-vaporised surface; chrome reflector.

LIGHTFORMS

RECESSED DOWNLIGHT

INDOOR LIGHTING

This ceiling recessed downlight is highly functional, with a 360° rotate and 45° tilt. This allows for more adjustment at higher angles needed to illuminate a space at higher level. High lumen output capability and available in various finishes and colour temperatures, this light fitting is perfect for retail, workplace and hospitality lighting schemes.

LINEALIGHT

BOLLARD

OUTDOOR LIGHTING

Single emission bollard & pole for outdoor application. The warm white LED light source with a asymmetric 180° light distribution is composed of 1 arrayled LEDs. The luminaire body is made of die-cast aluminium en ab - 46100 and features a grey finish, processed by means of open pore anodizing + powder coating; the diffuser is made of uv resistant polymethylmethacrylate. The ingress protection degree is IP65, IK09.
