Product Detail | Bloxlimited

BEGA

WALL LIGHT

OUTDOOR LIGHTING

31 060

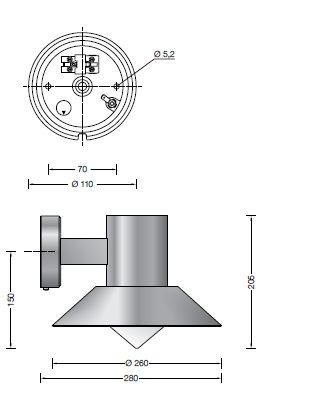

Luminaire made of copper and stainless steel. Opal glass with screw neck. Silicone gasket. Wall mounting with a mounting plate made of stainless steel, Steel grade number 1.4301. Mounting plate with 2 fixing holes ø 5.5 mm · 70 mm spacing, 1 cable entry for mains supply cable up to ø 10,5 mm max. 3 × 1,5@ Connecting terminal 2.5@ Earth conductor connection. LED power supply unit, 220-240 V x 0/50-60 Hz DC 176-264 V, Safety class I, Protection class IP 44, Protected against granular foreign bodies, > 1 mm and splash water, Impact strength IK05. Protection against mechanical, impacts < 0.7 joule, r – Safety mark, c – Conformity mark.

Specification

Power

LED 8W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

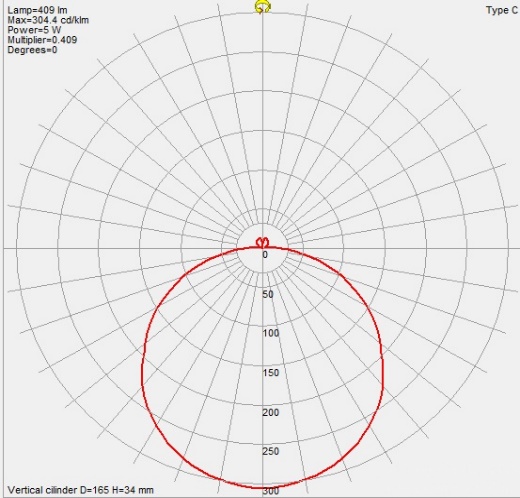

378 lm

Finishing

Eco Classic

IP Rating

IP44

Color Rendering

CRI>80

Driver

ON/OFF, 1-10V, DALI

FORMALIGHTING

SURFACE MOUNTED DOWNLIGHT

OUTDOOR LIGHTING

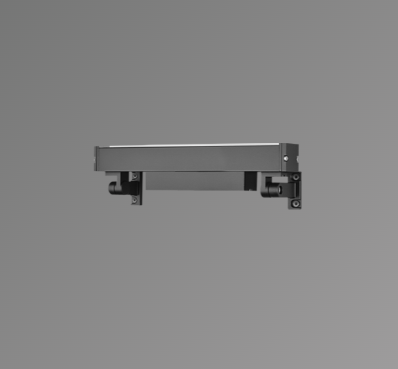

ﬂoodlights with body in stainless steel (AISI 316), inclusive of toughened safety glass and weatherproof durable silicone gasket. Front cover is designed to avoid accumulation of dust and water. Tiltable vertically 0°-90° and rotatable horizontally 0°-350°.

DGA

RECESSED DOWNLIGHT

INDOOR LIGHTING

Collection of recessed luminaires for indoor, with strict shapes for maximum integration with architecture. The products of the Gemma series, declined over the years in numerous sizes and applications, appear today, after a sensitive restyling intervention, as small volumes capable of illuminating and characterizing an entire environment.

LINEALIGHT

RECESSED DOWNLIGHT

INDOOR LIGHTING

Single emission downlights for indoor application. The warm white LED light source with a medium wide flood light distribution is composed of 1 powerled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed black ral 9005 finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.047 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.170 m length. The device features protection class III and can be ceiling-mounted, with a 46 x 46 mm hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.
