PROLICHT

RECESSED LINEAR LIGHT
INDOOR LIGHTING

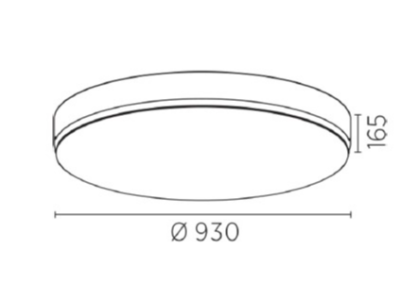

SIGN TRIMLESS_930

Edgeless luminaire · Photometric cover: Opal (PMMA) · invisible weld seams · Quick

assembly set available · "KORONA FRAME" · "MATTER"- Standard · 3-pole terminal

block · 240 Volt, 50/60 Hz · Direct light colors: optionally 3000K or 4000K. · LED

board coated with high-reflective material · MacAdam: 3 · 50,000 hours lifespan ·

Flicker-free operation with suitable electronic ballast · Light source can be replaced

by professional staff. · complies with EN 60598-1 · IP protection type IP20 · Electric

Specification

Power
114W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
12062LM
Finishing
WHITE
IP Rating
IP20
Color Rendering
CRI>80
Driver
DALI DRIVER

See more

MEYER
PROJECTOR LIGHT
OUTDOOR LIGHTING

Delivered lumens 56 lm/W. IP67, protection class I, impact resistance IK08, windage area 0,021 m2, dimensions: Ø 133 mm, width 153 mm, weight 1.9 kg. Tilt range: 180°. Max. ambient temperature ta 40°. Color Rendering Index CRI > 70. Power supply cable Ø 5 — 9 mm.






SPARK
RECESSED MAGNETIC TRACK PENDANT
INDOOR LIGHTING

Recessed or Surface mount magnetic track system containing linear light, spot light, wall washer and pendant light module to create your imagination of illumination purposes in a wonderful visual experience. Low voltage DC48V plus double insurance installation system magnetic + click make it work safely. Honeycomb accessory available upon request.

MEYER
PROJECTOR LIGHT
OUTDOOR LIGHTING
Housing made of die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, dark screenprint, silicon gasket, closure with 4 stainless steel screws, mounting bracket powder coated aluminum: 2 drilled holes Ø 8.5 mm, spacing 50‑70 mm, 1 centre hole Ø 17 mm, tilt range: 180°, cable gland: M20, connecting terminal: 3 pole, highly efficient reflector, integral driver (AC/DC), CRI > 85, 2 SCDM, service life L90/B10 > 50.000 h, luminous flux: 2550 lm, wattage: 26 W, delivered lumens 98 lm/W, protection type IP67, protection class I, impact resistance IK08, windage area 0,035 m², dimensions (L×H×W): 184 × 70 × 184 mm, weight 2.4 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE and ENEC marks. Customized solutions and modifications are possible: Special ral, db or ncs colours as polyester powder coat, luminaires in 2700 K and other colour temperatures and versions for high ambient temperature.
SPARK
SURFACE TRACKLIGHT
INDOOR LIGHTING
Track Adjustable Spotlight luminaire body made of aluminium housing with white powder coated finish. Black finish and honeycomb accessory available upon request.
