BEGA

WALL LIGHT

OUTDOOR LIGHTING

31 087

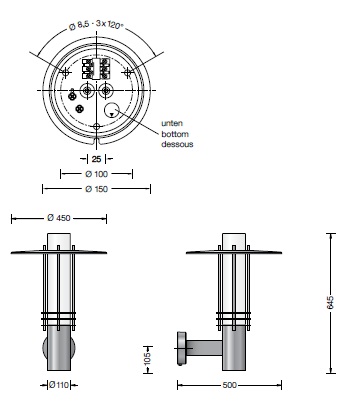

Luminaire made of copper, brass and stainless steel, Opal glass with screw neck. Silicone gasket. Mounting plate with 2 fixing holes ø 5.5 mm · 70 mm spacing, 1 cable entry for mains supply cable up to ø 10,5 mm max. 3 × 1,5@ Connecting terminal 2.5@ Earth conductor connection. LED power supply unit 220-240 V x 0/50-60 Hz DC 198-280 V. Safety class I. Protection class IP 44. Protected against granular foreign bodies, > 1 mm and splash water. Impact strength IK06 Protection against mechanical impacts < 1 joule, r – Safety mark, c – Conformity mark.

Specification

Power

LED 8.6W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

479 lm

Finishing

Copper & Bronze

IP Rating

IP44

Color Rendering

CRI>80

Driver

ON/OFF, 1-10V, DALI

LINEALIGHT

PENDANT

INDOOR LIGHTING

Double emission pendant luminaires for indoor application. The warm white LED light source with a diffused light distribution is composed of 1176 topled LEDs. The device body is made of aluminium 6060 and features a embossed white ral 9005 finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP40; the total weight is of 19.9 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 5 m length. The device features protection class III and can be ceiling-mounted. Compliant with the EN 60598-1 standard and its specific provisions.

SPARK

SUSPENDED LINEAR LIGHT

INDOOR LIGHTING

Office linear light system offering high efficiency 142Lm/w, microprismatic lens technology keeps glare to a min UGR<19, ensuring a comfortable visual experience. The lights feature DALI 2.0 DT8 for easy dimming and CCT tunable from 2700K - 6500K. The fixture connect seamlessly for a uniform lighting effect and the prewired trunking rail with 11 cables simplifies installation and maintenance.

Optics available 45°, 50° and 60°.

FLOS

RECESSED DOWNLIGHT

INDOOR LIGHTING

Eclectic Ø70. Non-adjustable Downlight. “Cone” style façade. Necessary installation pre-frames, not included (to be ordered separately). Recessed position of the LED: 47º cut-off angle. IP54 water tightness. Alternative options for lenses, orientation modules and style façades are available as spare parts.

LINEALIGHT

RECESSED DOWNLIGHT

INDOOR LIGHTING

Single emission downlights for indoor application. The warm white LED light source with a spot light distribution is composed of 1 arrayled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed black ral 9005 finish, processed by means of powder coating. The ingress protection degree is IP40; the total weight is of 0.120 kg. The power supply driver is not provided and is to be ordered separately. The total absorbed power is 6.5 W. The power supply cable is included and features a 0.15 m length. The device features protection class III and can be ceiling-mounted, with a 48 mm diameter hole (in plasterboard) with an outer casing, code 89374(for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.
