BEGA

WALL LIGHT

OUTDOOR LIGHTING

31 011

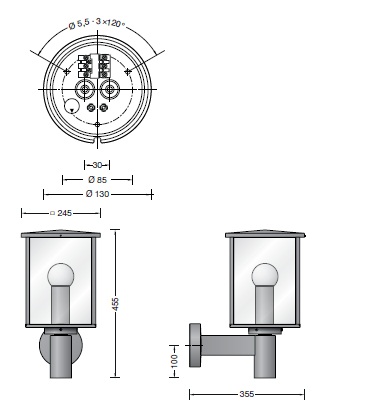

Luminaire made of aluminium alloy, aluminium and stainless steel Crystal glazing, Mounting plate with 3 fixing holes ø 5.5 mm. Angle 120° · Pitch circle ø 85 mm, 2 cable entries for through-wiring of mains supply cable ø 7-10,5 mm, max. 3 G 1.5@. Connecting terminal 2.5@ with plug connection. Earth conductor connection. LED power supply unit, 220-240 V x 0/50-60 Hz, DC 176-264 V. DC Start ≥ 198 V, Safety class I Protection class IP 44, Protected against granular foreign bodies > 1 mm and splash water, r – Safety mark, c – Conformity mark.

Specification

Power

LED 8W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

356 lm

Finishing

Aluminium & Steel

IP Rating

IP44

Color Rendering

CRI>80

Driver

ON/OFF, 1-10V, DALI

LINEALIGHT

BOLLARD

OUTDOOR LIGHTING

Single emission bollard & pole for outdoor application. The warm white LED light source with a park light distribution is composed of 36 powerled LEDs with CCT of 3000 K and a CRI 80; the source luminous flux is 9925 lm, with a 138.8 lm/W nominal luminous efficacy. The device body is made of die-cast aluminium en ab - 46100 and features a grey finish, processed by means of powder coating; the diffuser is made of extra clear glass with a silk-screening treatment. The ingress protection degree is IP66. The total absorbed power is 75 W. The power supply cable is included and features a 1 m length. The device features protection class II and can be pole-mounted.

LINEALIGHT

RECESSED DOWNLIGHT

INDOOR LIGHTING

Single emission recessed downlights for indoor application. The super warm white LED light source with a spot light distribution is composed of 1 arrayled LEDs. The luminaire body is made of technopolymer and features a white finish;the diffuser is made of uv resistant polycarbonate. The ingress protectiondegree is IP20.

LINEALIGHT

WALLWASHER

OUTDOOR LIGHTING

Single emission lines for outdoor application. The warm white LED light source with a asymmetric wallwasher light distribution is composed of 18 powerled LEDs. The device body is made of aluminium 6060 and features a anodised aluminum finish, processed by means of 20 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP68; the total weight is of 1.535 kg. The power supply cable is included and features a 0.25 m length. The device features protection class II and can be floor-mounted with an outer casing, code 99914 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.

LINEALIGHT

WALL LIGHT

OUTDOOR LIGHTING

Single emission submerged for outdoor application. The natural white LED light source with a medium wide flood light distribution is composed of 1 powerled LEDs with CCT of 4000 K and a CRI 80; the source luminous flux is 620 lm, with a 137.8 lm/W nominal luminous efficacy. The device body is made of stainless steel and features a steel finish; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP68; The power supply driver is not provided and is to be ordered separately. The total absorbed power is 4.5 W. The power supply cable is included and features a 2 m length. The device features protection class III and can be wall lights or floormounted with an outer casing, code 83140 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.
