Surface mount ceiling light come in 3 different lengths, L137mm in 10W, L270mm in 20W and L400mm in 30W. Aluminium housing material and powder coated black finishing. IP20

Luminaire made of copper, brass and stainless steel. Antique glass Wall mounting with a mounting plate made of stainless steel, Steel grade number 1.4301. Mounting plate with 2 fixing holes ø 5.5 mm · 70 mm spacing 1 cable entry for mains supply cable up to ø 10,5 mm max. 3 × 1,5@ Connecting terminal 2.5@ with plug connection, Earth conductor connection, Lampholder E 27. Safety class I. Protection class IP 23. Protected against granular foreign bodies. > 12 mm and showers up to 60°. r – Safety mark. c – Conformity mark.

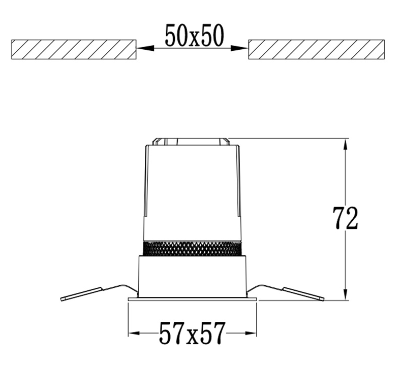

Single emission downlights for indoor application. The warm white LED light source with a medium wide flood light distribution is composed of 1 powerled LEDs with CCT of 3000 K and a CRI 80; the source luminous flux is 490 lm, with a 122.5 lm/W nominal luminous efficacy. The device body is made of plaster and features a white finish; the diffuser is made of polyamide. The ingress protection degree is IP20; the total weight is of 0.25 kg. The power supply driver is not provided and is to be ordered separately. The total absorbed power is 4 W. The power supply cable is included and features a 0.170 m length. The device features protection class III and can be ceiling-mounted, with a 85 x 85 mm hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.

Round ceiling luminaire with trim, light body and ring in cast aluminium. Central housing in aluminium extrusion, with toughened safety glass, weatherproof durable silicone gasket and external screws made of stainless steel. Front cover is designed to avoid accumulation of dust and water. Electrical installation includes double cable entry.
