CDN LIGHTING

Projector to be installed on threephase track with LED light source. Built-in 220-240V, 50-60Hz power supply. All finishes come with black track adapter, arm and back of the head. In the “all white” versions the track adapter, arm and back of the head come in white. The display is always offered in high gloss technical black anti-glare finish.

Cylindrical wall surface mounted luminaire made of aluminium; surface jet black powder coated; Inner colour lacquered in jet black; passive cooling of the LEDs through improved heat sink geometry; with COB (Chip on Board) technology for maximum efficiency; no appearance of multiple shadows; light colour 3000 K; ≤ 2 SDCM (initial MacAdam); CRI ≥ 90; min. 80% of luminous flux after 50000 operating hours; energy efficient LEDs with high CRI; incl. high quality lens system.

Updated with low wattage high lumen LED series Increased 160% efficacy Available 3 different wattage variations Max length is 1.5m

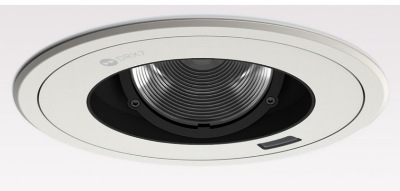

Round recessed mounted downlight made of die-cast aluminium with white powder-coating finish (RAL 9016) and white reflector; LED 18W; measurement Ø85mm; ceiling cutout of Ø75mm with a narrow mounting trim; rotation 355°and pivot max. 30°; CCT 3000K with a System Luminous Flux of 1250lm high color rendering at an index of CRI97; SDCM: 2; after a lifetime of 50000h L80B10 min. 80% of the luminous flux with energy efficient BRIDGELUX LED Chips; 5 years warranty.
