BEGA

WALL LIGHT

OUTDOOR LIGHTING

31 415

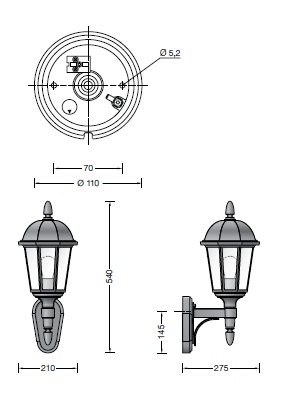

Luminaire made of aluminium alloy and stainless steel. Crystal bubble glass 2 fixing holes ø 5.2 mm, 70 mm spacing, 1 cable entry for mains supply cable up to ø 10,5 mm max. 3 × 1,5@ Connecting terminal 2.5@ with plug connection. Earth conductor connection. Lampholder E 27 Safety class I. Protection class IP 44. Protected against granular foreign bodies > 1 mm and splash water. r – Safety mark. c – Conformity mark

Specification

Power

LED 100W

Color Temperature

3000K

Light Source Type

LED

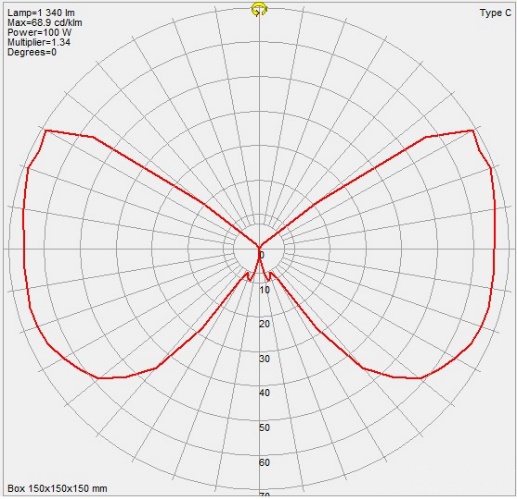

Lumen Output

1190 lm

Finishing

Aluminium & Steel

IP Rating

IP44

Color Rendering

CRI >80

Driver

ON/OFF, 1-10V, DALI

LIGHTFORMS

UP/DOWN WALL LIGHT

INDOOR LIGHTING

A compact and versatile cylindrical light source with a huge range of optical options. This including an indirect lighting option, which despite expectation is perfectly even on the ceiling. The construction is an extruded aluminium housing packaged with either optic, reflector or LED engine but always in the classic and clean cylindrical form. Control gear is mostly integral and the full range of extras is available - sensors (CP, Simmtronic, Hytronik, Tridonic + Others), emergency, daylight harvesting, Casambi, Power over Ethernet (PoE) & many other integrated additions.

LINEALIGHT

RECESSED DOWNLIGHT

INDOOR LIGHTING

Single emission downlights for indoor application. The warm white LED light source with a medium flood light distribution is composed of 1 powerled LEDs. The device body is made of aluminium 6026 and features a embossed white ral 9003 finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.128 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.170 m length. The device features protection class III and can be ceiling-mounted, with a 35 mm diameter hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.

UNILAMP

SPOTLIGHT

OUTDOOR LIGHTING

By its very name CANNON has a robust construction and is suitable in applications that require high lighting levels from medium to long distance. A wide range of mounting accessories including ground mount base, pole top mount, and pole/ wall mount arm is available. This luminaire utilizes a high power COB LED in three steps SDCM. CANNON is available in two sizes with mid-narrow, mid-wide and very wide beam angle in 2700K, 3000K and 4000K. The pure aluminium reflector used is designed by high-end lighting engineering software. The integrated aiming scale allows the lighting designer to have confidence that the light distribution will be exact on any surface. CANNON is suitable to light up medium size to large size objects or areas such as billboards, building facades, public parks, pedestrian, statues and public landmarks.
