The Eclipse Round is a recessed, tilt behind, adjustable downlight with a Ø80mm bezel and features a beautifully sculpted anti-glare baffle inside a Ø32mm aperture. Unique, elegant small aperture. 360° Rotation, 26° Tilt. Easily interchangeable optics. Flawless finishes available on all components. Part of a wide family range of fully modular luminaires

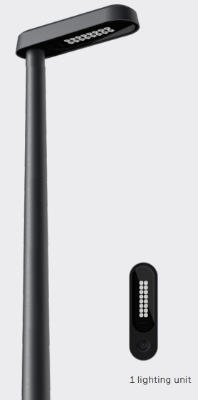

Housing accommodates 1 LED lighting unit (LED Board: 16 LED)Various light distributions for area, street and walkway lightingCurrent feed: 200 mA–650 mA, depending on ambient temperature Max. Luminous flux [lm] 3,500

Constant lumen output (CLO) and emergency power supply (AC/DC) available upon request . Electronic operating device with DALI, 1–10 V interface, stand-alone programming or Line Switch available upon request

Colour temperatures: 2,200 K (CRI ≥ 70), 2,700 K (CRI ≥ 70), 3,000 K (CRI ≥ 80), 4,000 K (CRI ≥ 70), 5,700 K (CRI ≥ 70) CRI ≥ 80, other colour rendering indexes available upon request. IP66

Recessed inground uplight luminaire ,made of stainless steel housing, installation bush made of polyamide and white safety glass. Drive-over luminaire from vehicles with pneumatic tyres. Dust-tight and water pressure tight. Maximum submersion depth 20m. IP68,IK10.

24 V, IP67 protected and IK10 certified, linear LED luminaire for indoor and outdoor in-ground installation. Suitable for installation into roads and parking lots according to EN 60598-2-13. To be walked on and traversed by vehicles with air filled tires (including trucks used for delivery). Polyurethane encapsulation offering a premium water proof sealing (values), UV resistance (no coloration or increase of absorption) chemical stability against urban gazes and protection against abrasion. Stainless Steel V4A housing delivered with male/female IP67 connectors. Available either with an opal top layer or transluscent with an internal 10° and 30° lenses for wall grazing. Light source assembled using state of the art automated Reel-to-Reel (R2R) production process supporting LED Linear™ Tj Away thin flexible circuit board technology.
