CDN LIGHTING

Luminaire made of aluminium alloy, aluminium and stainless steel Opal glass with screw neck. Silicone gasket. Mounting plate with 2 fixing holes ø 5.2 mm · 70 mm spacing, 1 cable entry for mains supply cable up to ø 10,5 mm max. 3 × 1,5@ Connecting terminal 2.5@ with plug connection. Earth conductor connection. LED power supply unit 220-240 V x 0/50-60 Hz. Safety class I. Protection class IP 44. Protected against granular foreign bodies > 1 mm and splash water. Impact strength IK04, Protection against mechanical impacts < 0.5 joule, r – Safety mark, c – Conformity mark.

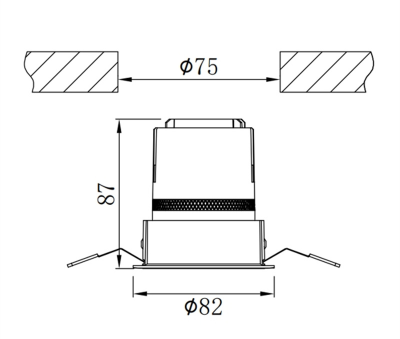

Recessed adjustable square downlight with snoot and luminaire body made of aluminium housing with white powder coated trim finish. Black finish and honeycomb accessory available upon request.

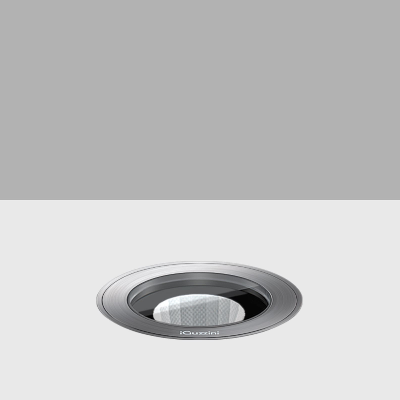

Floor or ground-recessed luminaire designed to use white monochrome LED lamps, a fixed optic and powered with a continuous current of 350/500mA. The round frame with no visible screws and the optical assembly are made of AISI 304 stainless steel with an extra-clear, sodium-calcium tempered glass cover. The luminaire is fixed to the outer casing using special locking seals that hold it in place. The unit comes complete with LED circuit and methacrylate lens. The product's wiring system features an A2 stainless steel cable gland with a 1800 mm long H05RNF type 2x1 mm² output power cable. The cable is equipped with an anti-transpiration device (IP68) that consists of a silicone-coated joint located on the power cable. An outer casing is available for installation and can be ordered separately from the plastic optic assembly. The glass unit, optical assembly, frame and outer casing together guarantee a maximum static load resistance of 2000 kg. The maximum surface temperature of the glass is less than 40°C.

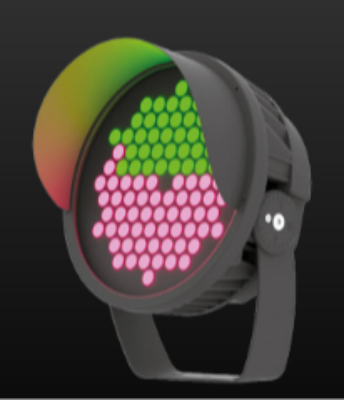

Create striking visual impact across large surfaces with our Round and Square Grazers. Ideal for architectural and façade lighting, these fixtures feature Media PiX with up to 4 pixels per unit, multiple beam angles, and RGBW adaptability. Built for durability with an IP66 IK06 rating, they are powered by either 24V DC or 220–240V AC—delivering reliable performance and powerful illumination for bold, dynamic effects. DMX control compatibility offers versatile creative control.
