CDN LIGHTING

ADVANCE MODEL WITH COLOR TONE CONTROL IN ADDITIONAL TO TRACKING FUNCTION

double emission pendant luminaires for indoor application. The warm white LED light source with a diffused light distribution is composed of 64 topled LEDs with CCT of 3000 K and a CRI 80; the source luminous flux is 2414 lm, with a 150.9 lm/W nominal luminous efficacy. The device body is made of iron and features a embossed white ral 9003 finish, processed by means of coating; the diffuser is made of pmma; the mounting frame is made of iron, with a zinc finish, processed by means of washing. The ingress protection degree is IP20; the total weight is of 1.4 kg. The total absorbed power is 20 W. The device features protection class II and can be wall lights-mounted. Compliant with the EN 60598-1 standard and its specific provisions

Recessed/surface luminaire with light housing in aluminium extrusion inclusive of with toughened safety glass, weatherproof durable silicone gasket and external screws made of stainless steel. Ring and back plug cover in cast aluminium. Base and bracket in cast aluminium. Front cover designed to avoid accumulation of dust and water. Ceiling installation via clamping wings for ceiling thickness 1 to max.30mm. Surface version tiltable vertically 0-140° and rotable horizontally 350°, inclusive of mechanical locking system to ensure aiming stability.

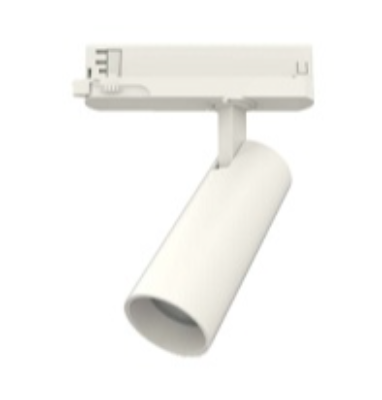

Recessed or Surface mount magnetic track system containing linear light, spot light, wall washer and pendant light module to create your imagination of illumination purposes in a wonderful visual experience. Low voltage DC48V plus double insurance installation system magnetic + click make it work safely. Reflector come with Silver, Chrome Black and White and honeycomb accessory available upon request.
