CDN LIGHTING

Bright 1.0 316L code: CW10125MAI-2 recessed for outdoor and underwater applications; walkover up to 500 kg; recessed (wall, ground), max depth 10 m; Power consumption: max 2W; Power supply: max 500mA; Lumen output at source: 195 lm (3000K, 500mA); Delivered lumen output: 127 lm (3000K, 500mA, 21°); 1 power LED, 2-step MacAdam, 60 000h L90 B10 (Ta 25°C); LED colour: 3000K; Optics: 21°: optical system consisting of a high-efficiency TIR lens; CRI Colour Rendering Index: 80.

Light fixture with high-performance LED light sources. Drive-over recessed floor installation with floorprotruding cap. All the versions are drive-over up to 5000Kg. Due to the low height of the cap, Megara 90 is also suitable for installation in walk-over areas, being careful to avoid areas of direct transit. Composed by body, cap, diffuser, recessing box. Body and cap in painted EN AB44100 aluminium, silicone gaskets; provided with 30 cm-long pre-resined three-pole connection cable. Electronic ballast integrated in the body. Diffuser in UV resistant polycarbonate.Power connection to the mains by means of the IP67 connector supplied with the light fixture, which can be housed in the recessing box and is suitable for cables with a diameter from 5 to13.3 mm. Fixing to the recessing box is ensured by means of anti-vandal screws TORX. Recessing box for laying in reinforced polymer to be ordered separately. Radial emission beam optic. White monochromatic LEDs available in 3 colour temperatures in AISI 316 stainless steel. Painted die-cast aluminium with 3-stage outdoor treatment. Technical features of light fixtures in compliance with EN60598-1 and part 2-13. IP Rating IP65-IP67.ENEC approved.Insulation class I.

Luminaire made of aluminium alloy Finish colour velvet white Light-diffusing synthetic LED cover. Wall luminaire PRIMA with two-sided light distribution opening. Fully glare free light for lighting wall surfaces. For interior lighting design.

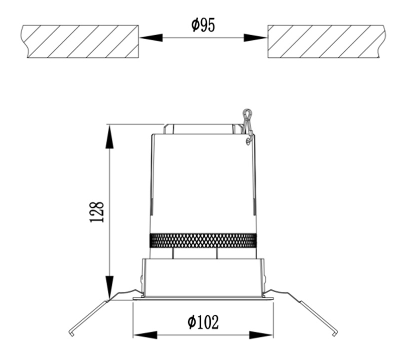

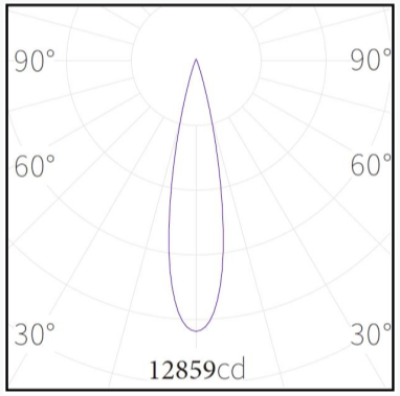

Indoor recessed Dynamic White Downlights with a medium beam light distribution composed of 8 power LEDs. Tunable color temperature 2700K - 5700K. Luminaire body is made of die-cast aluminium EN AB 46100 and features a white powder coating finish. The mounting frame is made of die-cast aluminium EN AB 46100 with white power coated finish.IP20
