ELR

ADJUSTABLE DOWNLIGHT

INDOOR LIGHTING

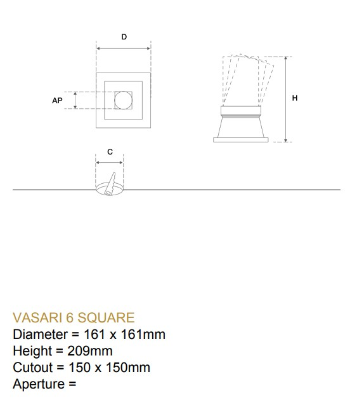

VASARI-6.T.SQ.TL.MB.MB_35D_52W

A series of premium recessed downlights available in various sizes, shapes, and finishing. Paired with ELR’s highly configurable LED modules, the Vasari downlight series offers a high degree of flexibility, aesthetics and functionally for the most discerning of applications.

Specification

Power

52W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

7929LM

Finishing

WHITE TRIM - WHITE REFLECTOR

IP Rating

IP40

Color Rendering

CRI 90

Driver

ON/OFF DRIVER

MEYER

PROJECTOR LIGHT

OUTDOOR LIGHTING

Housing made of die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, silicon gasket, closure with 2 stainless steel screws, powder coated aluminum mounting bracket with tilt scale: 2 drilled holes Ø 8.5 mm, spacing 70 mm, 1 centre hole Ø 17 mm, tilt range: 120°, cable gland: PG11, connecting terminal: 3 pole, integral driver (AC/DC), CRI > 80, max 2 SDCM, service life L90/B10 > 50.000 h, Beam angle (fwhm): 50° / 72°, luminous flux: 2853 lm, wattage: 28 W, delivered lumens 102 lm/W, protection type IP65, protection class I, impact resistance IK08, windage area 0,04 m², dimensions (L×H×W): 140 × 175 × 190 mm, weight 2.1 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE mark. Customized solutions and modifications are possible: Special ral, db or ncs colours as polyester powder coat, luminaires in 2700 K and other colour temperatures and versions for high ambient temperature.

LIGHTFORMS

SUSPENDED PENDANT LIGHT

INDOOR LIGHTING

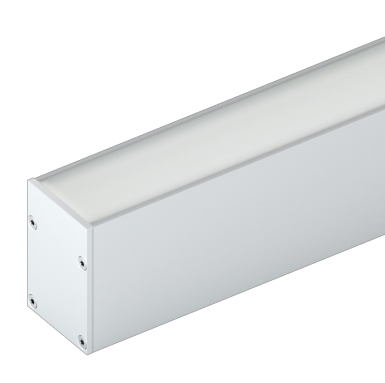

Triplane features three-side illumination from a 68mm lensed channel. Extremely efficient, the white opal, acrylic lens is impact-resistant. Individual or continuous row mounting. Remote driver. Available in suspended and surface models.

SPARK

RECESSED SPOTLIGHT

INDOOR LIGHTING

Recessed adjustable spotlight luminaire body made of aluminium housing with white powder coated finish. Black finish and honeycomb accessory available upon request.

BEGA

FLOODLIGHT

OUTDOOR LIGHTING

Performance floodlight with G½ mounting bush in compact design. The floodlight can be bolted together with any female thread G½ according to ISO 228 supplied by others or to BEGA accessories. Symmetrical wide beam light distribution Half beam angle 46° For special lighting applications, the symmetrical light cone can be changed to a flat beam using an additional diffuser lens. Luminaire made of aluminium alloy, aluminium and stainless steel BEGA Unidure® coating tehnology Clear safety glass Silicone gasket Reflector surface made of pure aluminium Optical silicone lens · BEGA Hybrid Optics® Rotation range of floodlight 350° Swivel range - 30°/+140° Mounting bracket with G½ threaded connection Thread length: 10mm Connecting cable X05BQ-F 5G1mm² Cable length 1m BEGA Ultimate Driver. IP65,IK08.
