CDN LIGHTING

Outdoor Spike light made of die-cast aluminium housing and in powder coated black finish. Silicon rubber gasket and external driver. Suitable for garden, balconies terraces and walkway application. Luminaire come with 3 differents wattage 5W, 7W and 12W.

Grid On is the surface mounted member of the Grid family. Similar to Grid In, Grid On combines multiple spots in one fixture. Thanks to the individual flexibility of each spot, Grid On is multi applicable and its minimalistic design makes it usable in many occasions. Also in the same spirit of the recessed version, the Minigrid On is the miniature version, it comes as a small box with integrated driver and easy-to-install snap-in spotlights.

Surface mounted downlight, luminaire body made of aluminium housing with white powder coated finish. Reflector finish available White, Silver and Black Chrome. White finish and honeycomb accessory available upon request.

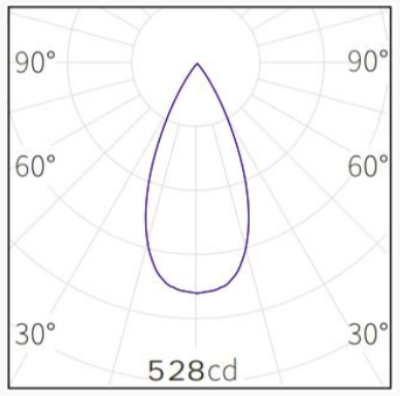

Housing made of extruded aluminum and corrosion‑resistant die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, silicon gasket, closure with 4 stainless steel screws, powder coated aluminum mounting bracket with tilt scale: 2 drilled holes Ø 9 mm, spacing 70 mm, 1 centre hole Ø 22 mm, tilt range: 105°, cable gland: M20, connecting terminal: 3 pole, focusable projection lens for precise light control and sharp‑edged image projections, integral driver (AC/DC), CRI > 80, service life L70/B > 50.000 h, Beam angle (fwhm): 22°, luminous flux: 1445 lm, wattage: 55 W, delivered lumens 26 lm/W, protection type IP67, protection class I, impact resistance IK08, windage area 0,085 m², dimensions: Ø 240 mm, width 425 mm, weight 8 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE and ENEC marks. Customized solutions and modifications are possible: Special ral, db or ncs colours as polyester powder coat, luminaires in 2700 K and other colour temperatures and versions for high ambient temperature.
