PROLICHT

ADJUSTABLE DOWNLIGHT

INDOOR LIGHTING

BIONIQ_# 220-0760_ROUND_38D_28W

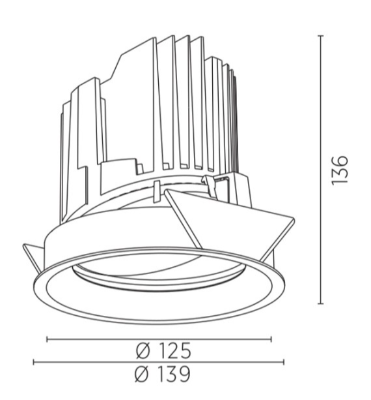

Rotatability 355°, pivotability 30°. passive cooling through optimized heat sink · optional optics. Alignment and fixation using the "ONE LOCK" system · optimized anti-glare properties · exact positioning system · free orientability (EAS) · 28 colors possible. IP protection type IP20 · complies with EN 60598-1 · Height: 136 mm · Diameter: 139 mm

Specification

Power

28W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

2280LM

Finishing

WHITE TRIM - WHITE REFLECTOR

IP Rating

IP20

Color Rendering

CRI >90

Driver

ON/OFF DRIVER

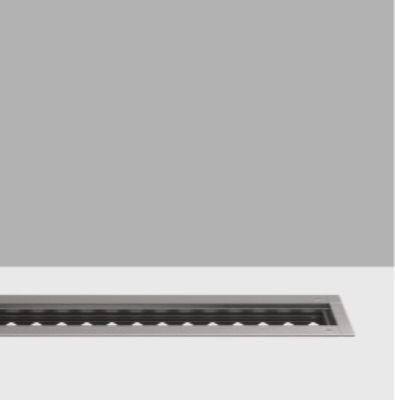

LINEALIGHT

WALLWASHER

OUTDOOR LIGHTING

Single emission lines for outdoor application. The warm white LED light source with a extra wide flood light distribution is composed of 12 powerled LEDs. The device body is made of aluminium 6060 and features a anodised aluminum finish, processed by means of 20 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP68; the total weight is of 1.020 kg. The power supply cable is included and features a 0.250 m length. The device features protection class II and can be floor-mounted with an outer casing, code 99762 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.

LINEALIGHT

WALLWASHER

INDOOR LIGHTING

Single emission lines for indoor application. The warm white LED light source with a diffused light distribution is composed of 180 topled LEDs. The device body is made of PC and features a opal white finish; the diffuser is made of PC. The ingress protection degree is IP40; the total weight is of 0.050 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.2 m length. The device features protection class III and can be wall lights or ceilingmounted. Compliant with the EN 60598-1 standard and its specific provisions.

LINEALIGHT

SPOTLIGHT

OUTDOOR LIGHTING

Single emission projectors for outdoor application. The warm white LED light source is composed of 1 arrayled LEDs with CCT of 3000 K and a CRI 80; the source luminous flux is 1267 lm, with a 105.6 lm/W nominal luminous efficacy. The device body is made of die-cast aluminium en ab - 46100 and features a dark brown finish, processed by means of open pore anodizing + powder coating; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP66,IK09.

LINEALIGHT

RECESSED DOWNLIGHT

INDOOR LIGHTING

Single emission downlights for indoor application. The warm white LED light source with a medium flood light distribution is composed of 1 powerled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a black finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.128 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.170 m length. The device features protection class III and can be ceiling-mounted, with a 56 mm diameter hole (in plasterboard) with an outer casing, code 89374 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.
