CDN LIGHTING

Single emission projectors for outdoor application. The super warm LED light source with a medium flood light distribution is composed of 1 arrayled LEDs with CCT of 2700 K and a CRI 80; the source luminous flux is 849 lm, with a 126.7 lm/W nominal luminous efficacy. The device body is made of die-cast aluminium en ab - 46100 and features a dark brown finish, processed by means of open pore anodizing + powder coating; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP66,IK05.

Luminaire made of copper, brass and stainless steel, Opal glass with screw neck. Silicone gasket. Mounting plate with 2 fixing holes ø 5.5 mm · 70 mm spacing, 1 cable entry for mains supply cable up to ø 10,5 mm max. 3 × 1,5@ Connecting terminal 2.5@ Earth conductor connection. LED power supply unit 220-240 V x 0/50-60 Hz DC 198-280 V. Safety class I. Protection class IP 44. Protected against granular foreign bodies, > 1 mm and splash water. Impact strength IK06 Protection against mechanical impacts < 1 joule, r – Safety mark, c – Conformity mark.

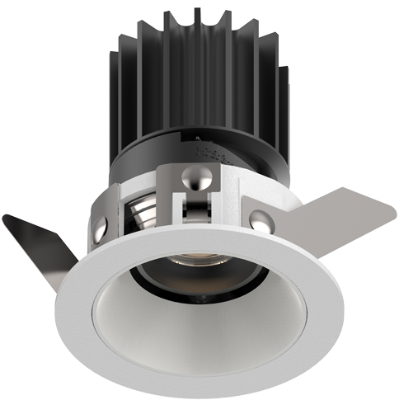

Recessed adjustable downlight come with snoot, luminaire body made of aluminium housing with white powder coated finish. Black finish and Honeycomb accessory available upon request.

Single emission recessed downlights for indoor application.. The warm white LED light source with a medium flood light distribution is composed of 1 powerled LEDs. The luminaire body is made of technopolymer and features a white finish; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP20.
