Product Detail
Home Products Detail

Products

CDN LIGHTING

RECESSED DOWNLIGHT
OUTDOOR LIGHTING
HS6070F 12W36D


Specification

Power
12W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
1049LM
Finishing
ALUMINUM
IP Rating
IP65
Color Rendering
CRI>95
Driver

See more

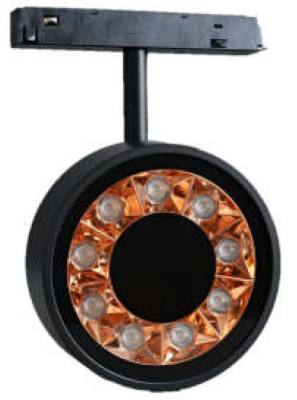

XAL
TRACKLIGHT
INDOOR LIGHTING

Track light made of die-cast aluminium; surface powder coated; spotlight head 355° rotatable and 90° tiltable; converter integrated in the power track adapter; high-quality, aluminium, vapour deposition coated reflector with faceted design; precise radiation characteristics with different beam angles; good glare reduction due to recessed light point plane; optical attachments as accessories; COB (Chip on Board) technology for maximum efficiency; no multiple shadows;

HELVAR
CONTROL SYSTEM
CONTROL SYSTEM

The RS232 Interface is compatible with Evolution control systems which both use the standard mode lighting M-BUS network. The small form factor and multi-device connectivity makes the MBUS-INT-232 a flexible addition to any system. The RS232 Interface extends the integration capabilities of the Mode Lighting control system by adding extra RS232 connections. The interface is bi-directional allowing the systems to send commands to external devices and receive commands from integration control sys

NEKO
RECESSED DOWNLIGHT
INDOOR LIGHTING
Square recessed double head downlight made of die-cast aluminium with white powder-coating finish (RAL 9016) and white reflector; ON-OFF Driver; System Power 2*13W; measurement 155mm x 85mm; ceiling cutout of 145mm x 75mm with a narrow mounting trim; rotation 355° and pivot max. 30°; CCT 3000K with a System Luminous Flux of 2*800lm; high color rendering at an index of CRI90; after a lifetime of 50000h L80B10 min. 80% of the luminous flux with energy efficient CITIZEN LED Chips; 5 years warranty; lighting perfectly suitable for reading, writing as well as computer and control work with UGR<19; degree of housing protection IP20 (LED Module IP54); impact resistance of the luminaire is in the class IK06; light source replaceable by a qualified electrician; driver replaceable by a qualified electrician

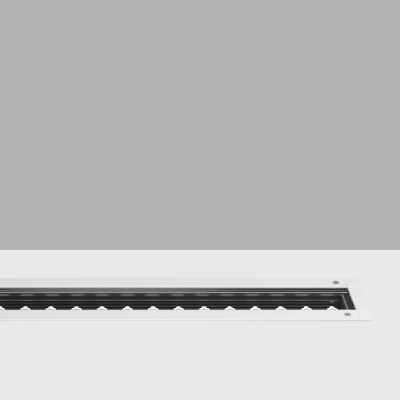

LINEALIGHT
WALLWASHER
OUTDOOR LIGHTING
Single emission lines for outdoor application. The warm white LED light source is composed of 12 powerled LEDs. The device body is made of aluminium 6060 and features a anodised aluminum finish, processed by means of 20 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP68; the total weight is of 1.020 kg. The power supply cable is included and features a 0.25 m length. The device features protection class II and can be floor-mounted with an outer casing, code 99913 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.
