CDN LIGHTING

Pendant mounted linear luminaire with luminaire body in extruded aluminium. End caps in cast aluminium, diffuser made of satin opal acrylic. Supplied with ceiling canopy, pre-installed 1.5m electrical cable and with 1.5m pendant steel wires. Available in 3 different length.

Outdoor Wall-mounted luminaire in neutral white LED lamps and light blade optic. Luminaire consists of an optical assembly, upper cap and base for fixing to the wall. The optical assembly, upper cap and base are made of die-cast aluminium alloy coated with liquid acrylic paint (grey finish) or textured liquid (white finish) with a high level of resistance to weather and UV rays. The light blade optic lens is made of a two-component material (acrylic and polycarbonate), joined to the optical assembly with silicone. There is a single stainless steel M14x1 cable gland and FEP outlet cables L=150mm, plus an electronic circuit with neutral white LED. All external screws used are made of A2 stainless steel. IP66, IK07

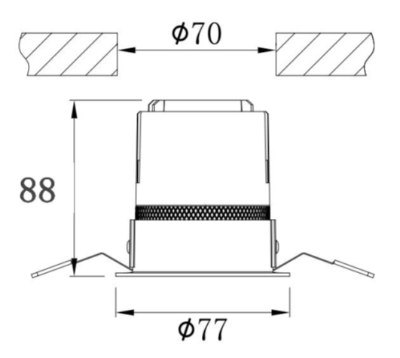

Round shape mounting trim in cast aluminum with brackets for trim installation on a ceiling thickness max. 20mm. Occhio Pin is available in two different designs, Pin and Slot. IP44 version for water protection ideal for bathroom. Designed with deep regressed lamp position for glare-free comfort. Adjustable version tilltable vertically 0-35°.

The Occhio Pin provides a consistent ceiling appearance whilst the Occhio Slot provides the maximum adjustment in this type of small fixture.

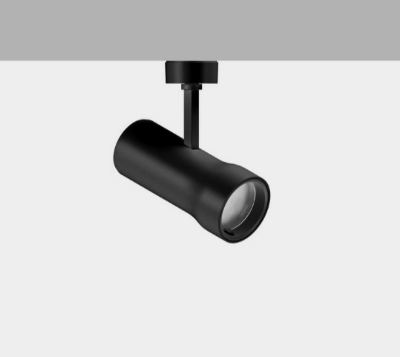

Cygnus came about due to demand for a track fitting following the style and theme of all our designs, ie: simple, strong and well finished. Cygnus utilises the LEDil reflectors for a perfect and reliable light shape. The extruded aluminium housing and is available in our full range of finishes. Cygnus is supplied as standard with a Tridonic in track adapter, so the control gear is integral. Other adapters are available, but should be specified to the factory.
