UNILAMP

FOOT LIGHT

OUTDOOR LIGHTING

I-BRICK_6001-0-3-935-03

I-BRICK is a range of wall recessed luminaires with LED light sources plus a good glare control allows it to be installed in most places where a comfortable illumination is needed. The low energy consumption LED module saves operating cost while providing acceptable lighting levels. I-BRICK is available in five different styles in two size. The shallow housing can be installed in either wall or step where recess depth is limited. The high quality LED drivers is integrated inside the luminaire for ease of installation. I-BRICK is commonly used to illuminate stairways, pathways and walls.

Specification

Power

5.6W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

180LM

Finishing

GREY

IP Rating

IP65

Color Rendering

CRI >80

Driver

ON/OFF DRIVER

WIBRE

UNDERWATER LIGHT

OUTDOOR LIGHTING

Protection class IP68 – up to 10 m water depth. Entirely made of stainless steel 316Ti 1.4571. POW-LED cold white, warm white, neutral white. POW-LED clored. Operating mode: constant current. Low voltage halogen QR-CB35 12 V-AC. For concrete pools, in walls or steps with an installation housing (4.0089, not included). Cable gland PG9, marine grade 316L stainless steel. Supplied with light source and UW-cable (3 m) already connected

XAL

RECESSED DOWNLIGHT

INDOOR LIGHTING

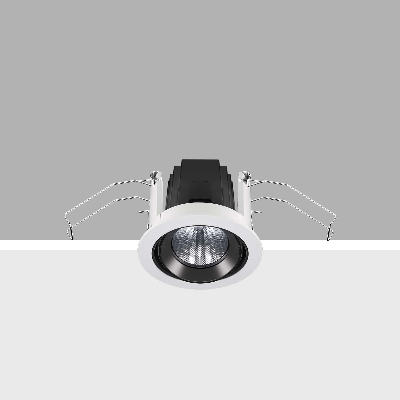

Round recessed spotlight in die-cast aluminium; 1 lamp; surface matt silver; installation without tools in mounting set due to patented ball catch system; round installation housing; with trim jet black; suitable for ceiling thickness of 2-25 mm; passive cooling of the LEDs through improved heat sink geometry; with COB (Chip on Board) technology for maximum efficiency; no appearance of multiple shadows; light colour 2700 K; ≤ 2 SDCM (initial MacAdam); CRI ≥ 90; min. 80% of luminous flux after 50

XAL

ADJUSTABLE DOWNLIGHT

INDOOR LIGHTING

Round recessed spotlight made of die-cast aluminium and epoxy black finishing. 360° rotatable and 30° tilt able angle. Suitable for ceiling thickness of 2-25 mm. Passive cooling of the LEDs through improved heat sink geometry with COB (Chip on Board) technology for maximum efficiency. No appearance of multiple shadows. The ingress protection degree is IP20.
