IGUZZINI

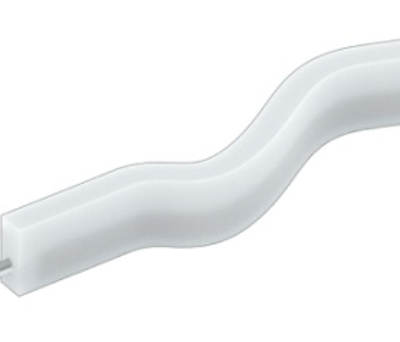

Light source designed for end lights and sidelight fibres where colour change or sparkling effect is required. Typical fields of application: interior as well as exterior lighting, big starlight ceilings, works of art, entrances, big rooms, lobbies, canopies, fountains, swimming pools, indication lights and façade lighting.

Single emission downlights for indoor application. The warm white LED light source with a medium wide flood light distribution is composed of 1 powerled LEDs with CCT of 3000 K and a CRI 80; the source luminous flux is 490 lm, with a 122.5 lm/W nominal luminous efficacy. The device body is made of plaster and features a white finish; the diffuser is made of polyamide. The ingress protection degree is IP20; the total weight is of 0.25 kg. The power supply driver is not provided and is to be ordered separately. The total absorbed power is 4 W. The power supply cable is included and features a 0.170 m length. The device features protection class III and can be ceiling-mounted, with a 85 x 85 mm hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.

Square ceiling mounted spotlight made of aluminium; surface traffic white powder coated; Inner colour lacquered in traffic white; luminaire housing can be attached to mounting plate without tools by interlock; passive cooling of the LEDs through improved heat sink geometry; with COB (Chip on Board) technology for maximum efficiency; no appearance of multiple shadows.

IP66. Class I. IK07. Marine-grade, die-cast aluminum alloy. 5CE superior corrosion protection including PCS hardware. Safety glass lens. Silicone CCG Controlled Compression Gasket. Integral EC electronic converter in thermally-separated compartment. Advanced thermal management protects LEDs while optimising lumens output. CAD-optimised optics for superior illumination and glare control. OLC One LED Concept. For 2200 K version available on request, except [EES] distribution.
