Product Detail
Home Products Detail

Products

FLOS

ADJUSTABLE DOWNLIGHT
INDOOR LIGHTING

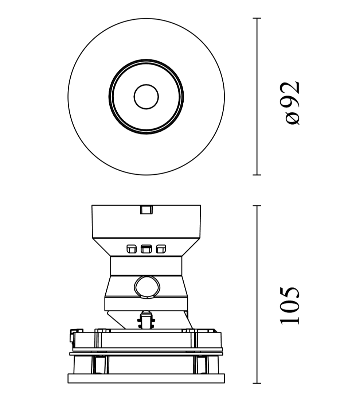

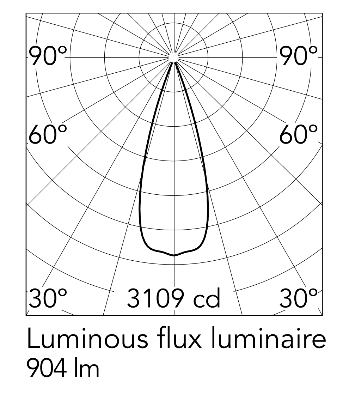

Eclectic 90 Adjustable Soft Led Array

Eclectic Ø90. Adjustable Downlight (40º tilt, 360º rotation). “Soft” style façade. Necessary installation pre-frames, not included (to be ordered separately). Recessed position of the LED: 41º cut-off angle. IP20 water tightness (for IP54, please ask the dedicated accessory). Alternative options for lenses, orientation modules and style façades are available as spare parts.

Specification

Power
12.6W
Color Temperature
2700K
Light Source Type
LED
Lumen Output
904LM
Finishing
WHITE
IP Rating
IP20
Color Rendering
CRI 90
Driver
ON/OFF DRIVER

See more

LINEALIGHT
RECESSED DOWNLIGHT
INDOOR LIGHTING
Single emission downlights for indoor application. The warm white LED light source with a flood light distribution is composed of 1 arrayled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed black ral 9005 finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.511 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.300 m length. The device features protection class III and can be ceiling-mounted, with a 92 x 92 mm hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.
BEGA
FOOT LIGHT
OUTDOOR LIGHTING

Luminaire made of aluminium alloy, aluminium and stainless steel BEGA Tricoat® coating technology Colour graphite or silver Safety glass with optical structure Required recessed opening 175 x 175mm Recessed depth 105mm Fixing is achieved by using two adjustable wedge-shaped claws.2 cable entries for through-wiring of mains supply cable ø 7-10.5mm, max. 5G1.5@ Connecting terminal and earth conductor terminal 2.5@ Complies with flicker requirements in accordance with IEEE 1789, DIN IEC/TR 63158, D

LINEALIGHT
RECESSED DOWNLIGHT
INDOOR LIGHTING
Single emission downlights for indoor application. The warm white LED light source with a wide flood light distribution is composed of 6 powerled LEDs. The device body is made of aluminium and features a embossed white ral 9003 finish, processed by means of coating. The ingress protection degree is IP40; the total weight is of 0.24 kg. The power supply driver is not provided and is to be ordered separately. The device features protection class III and can be ceiling-mounted, with a 76 mm diameter hole (in plasterboard) with an outer casing, code 89374 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.

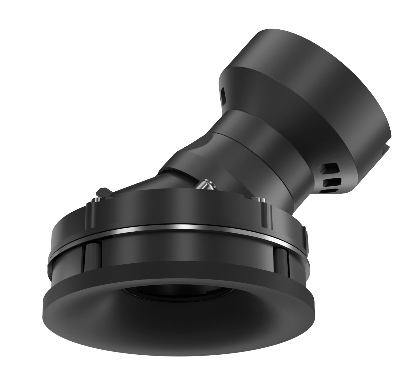

FLOS
RECESSED DOWNLIGHT
INDOOR LIGHTING

Eclectic Ø70. Non-adjustable Downlight. “Cone” style façade. Necessary installation pre-frames, not included (to be ordered separately). Recessed position of the LED: 47º cut-off angle. IP54 water tightness. Alternative options for lenses, orientation modules and style façades are available as spare parts.
