XAL

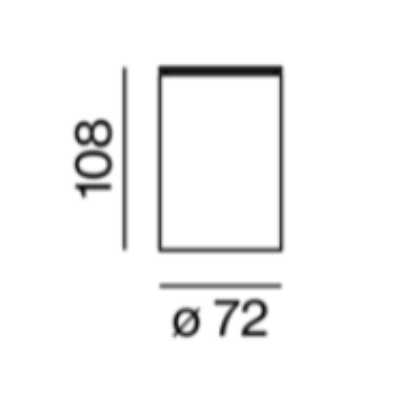

Surface mount track spotlight made of die cast aluminium housing and come with different diameter such as Ø55, Ø65, Ø70 and Ø75mm. Wattage from low 6W to 35W max. Fixture finishing available in Black or White color. Wide bean angles are avaiable. IP20

Housing made of corrosion‑resistant die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, dark screenprint, silicon gasket, closure with 3 stainless steel screws, for installation on poles Ø 60 ‑ 100 mm, tiltable base made of powder coated aluminum, 2 drilled holes Ø 9 mm, spacing 95 mm, 1 centre hole Ø 13.5 mm, tilt range: 90°, 360° adjustable, cable gland: M20, connecting terminal: 3 pole, highly efficient faceted rotationally symmetrical reflector, integral driver (AC/DC), CRI > 85, max 2 SDCM, service life L90/B10 > 50.000 h, Beam angle (fwhm): 89°, luminous flux: 3572 lm, wattage: 46 W, delivered lumens 78 lm/W, protection type IP67, protection class I, impact resistance IK08, windage area 0,025 m², dimensions: Ø 194 mm, width 124 mm, weight 3 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE and ENEC marks. Customized solutions and modifications are possible: Special ral, db or ncs colours as polyester powder coat, luminaires in 2700 K and other colour temperatures and versions for high ambient temperature.

Luminaire made of aluminium alloy, aluminium and stainless steel Antique glass. Wall mounting with a mounting plate made of stainless steel, Steel grade number 1.4301 Mounting plate with 2 fixing holes ø 5 mm · 70 mm spacing 1 cable entry for mains supply cable up to ø 10,5 mm max. 3 × 1,5@ Connecting terminals 2.5@ Earth conductor connection Lampholder E 27. Safety class I. Protection class IP 44. Protected against granular foreign bodies > 1 mm and splash water r – Safety mark, c – Conformity mark.

Recessed adjustable rectangular downlight come with snoot, luminaire body made of aluminium housing with white powder coated finish. Black finish and Honeycomb accessory available upon request.
