XAL

ADJUSTABLE DOWNLIGHT
INDOOR LIGHTING
SASSO 100 ADJ_048-2720911W 048-2796318 002-90789

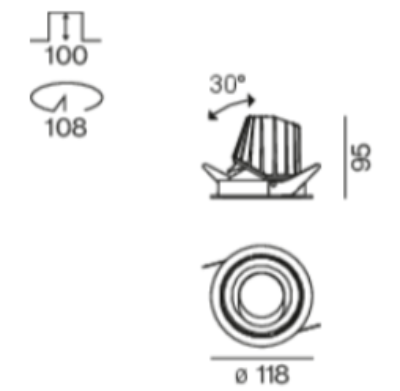

Round recessed spotlight in die-cast aluminium; 1 lamp; surface jet black; 360° rotatable and 30° tiltable; installation without tools in mounting set due to patented ball catch system; round installation housing; with trim jet black; suitable for ceiling thickness of 2-25 mm; passive cooling of the LEDs through improved heat sink geometry; with COB (Chip on Board) technology for maximum efficiency; no appearance of multiple shadows.

Specification

Power
26.7W
Color Temperature
2700K
Light Source Type
LED
Lumen Output
2340LM
Finishing
BLACK TRIM / BLACK REFLECTOR
IP Rating
IP40
Color Rendering
CRI 90
Driver
DALI DRIVER

See more

FORMALIGHTING
RECESSED DOWNLIGHT
OUTDOOR LIGHTING

Recessed/surface luminaire with light housing in aluminium extrusion inclusive of with toughened safety glass, weatherproof durable silicone gasket and external screws made of stainless steel. Ring and back plug cover in cast aluminium. Base and bracket in cast aluminium. Front cover designed to avoid accumulation of dust and water. Ceiling installation via clamping wings for ceiling thickness 1 to max.30mm. Surface version tiltable vertically 0-140° and rotable horizontally 350°, inclusive of mechanical locking system to ensure aiming stability.

PLATEK
INGROUND UPLIGHT
OUTDOOR LIGHTING

In-ground luminaire made of aluminium alloy body. Locking flange in AISI 316L stainless steel. A4 Stainless steel screws. Subjected to galvanic anodizing treatment divided into distinct phases: mechanical satin finishing, surface degreasing, anodic oxidation and final sealing. Installation of the recessed housing is cast concrete with a 20-30cm gravel soakaway. IP67, IK10

SPARK
ADJUSTABLE DOWNLIGHT
INDOOR LIGHTING
Recessed adjustable downlight, die cast aluminium housing body. Various choices on CCT, beam angle and inner reflector.
NEKO
RECESSED DOWNLIGHT
INDOOR LIGHTING
Round recessed ceiling spotlight made of die-cast aluminium with white powder-coating finish (RAL 9016) and white reflector; ON-OFF Driver; LED 9W; measurement of the mounting trim Ø88mm; ceiling cutout of Ø80mm with a narrow mounting trim; measurement of the spotlight Ø55mm; luminaire's weight is approximately 540g; rotation 350° and pivot max. 90°; CCT 3000K with an LED Output of 950lm; high color rendering at an index of CRI90; after a lifetime of 50000h min. 80% of the luminous flux with energy efficient CITIZEN LED Chips; 5 years warranty; lighting perfectly suitable for reading, writing as well as computer and control work according to DIN EN 12464-1 (UGR<19); degree of housing protection according to DIN EN 60529 (IP20)
