UNILAMP

SPOTLIGHT

OUTDOOR LIGHTING

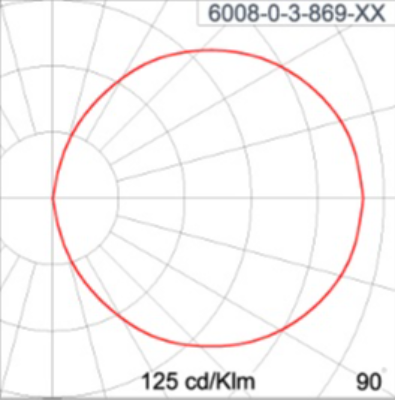

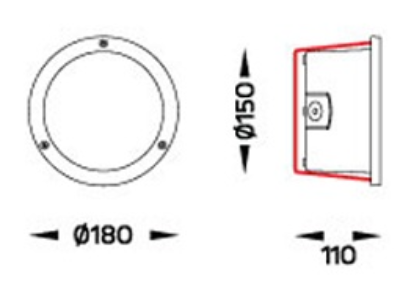

LUNA 6008-0-3-869-06

LUNA is a range of round-shaped wall recessed luminaires with LED light sources plus a good glare control allows it to be installed in most places where a comfortable illumination is needed. LUNA is available in four different front cover designs. It has a shallow housing and can be installed in either wall or step that have limited recessing depth. The high quality LED drivers is integrated inside the luminaire for ease of installation. LUNA is frequently used to illuminate stairways, pathways and wall where a general or directional light is needed.

Specification

Power

11W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

320LM

Finishing

WHITE

IP Rating

IP65

Color Rendering

CRI >80

Driver

ON/OFF DRIVER

SIMES

INGROUND UPLIGHT

OUTDOOR LIGHTING

Body made of AISI 316L monoblock stainless steel. Absence of screws (the luminaire is fixed to the recessing box with OR rings). Recessing box in polypropylene. Mechanical resistance of diffusor IK 08 Maximum load capacity 500 Kg. This luminaire contains built-in LED modules. In case of damage or malfunction please contact the manufacturer to receive additional instructions on how to replace and relative spare parts to order. The LED modules cannot be handled in the luminaire by the end user. This product contains a light source of energy efficiency class: F. LED modules are engineered accordingly to the existing regulations of Lumen Maintenance (LM80) and Technical Memorandum (TM21), where uniformity and quality of the light is 70,000 hours referred to L80 B10 Ta 25 ° C (50,000 hours referable to L80 B10 Ta 40°C). Lifespan of the luminaire min. 50,000 hours at 40°C. Performance Ambient temperature Tq 25°C. Operating ambient temperature range is from -20°C to +50°C. Storage temperature range from -20°C to +60°C.

SIMES

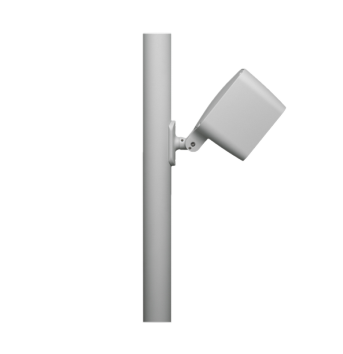

BOLLARD

OUTDOOR LIGHTING

The wiring of the fixtures must strictly respect the specifications. Shift Pole: Aluminium pole Ø 102 H 3000mm included. Pole must be fixed to the anchoring base (S.1469) to be securly buried in concrete or to the square plate (S.1468).

WIRING

Supply 0.2m cable section type H05RNF . Single cable entry sealed with B component epoxy resin, wired internally protected by silicon sheaths.. Isolation: CLASS II .

XAL

SUSPENDED DOWNLIGHT

INDOOR LIGHTING

Decorative suspended luminaire in aluminium; surface white powder coated; height adjustable U-profile pendant rod suspension (white) 1500mm, feed 2000mm (1500mm in U-profile), incl. ceiling mounting ring + hook (white) for multiple positioning of the luminaire in the room; spotlight head 265° rotatable and 90° tiltable; passive cooling of the LEDs through improved heat sink geometry; with COB (Chip on Board) technology for maximum efficiency; no appearance of multiple shadows
