Miniaturized design meets architectural scales: Its exceptional integration makes ADONIS ARCHITECTURAL an excellent choice for grazing applications and direct illumination on façades and ceilings. A multitude of options include several power levels and color temperatures plus a variety of light engines ranging from static white to RGBW, as well as 10°, 30° or 60° and opal optics to choose from. Polyurethane is utilized in ADONIS ARCHITECTURAL to make it more resistant to impact from salt water UV-light and solvents. High protection against vandalism thanks to a robust, powder-coated aluminum profile with an IK10 certification.

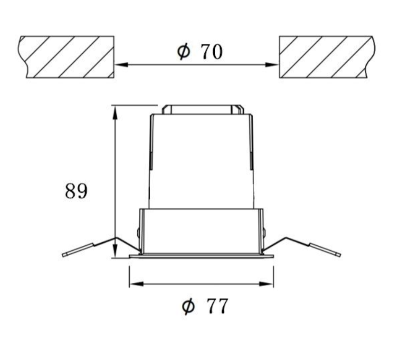

Round light fitting in aluminium; recessed light with wrap around edge; suitable for ceiling thickness of 10-25 mm; surface white powder coated; installation without tools using snap spring closure; external converter for ceiling insertion, through-wiring suitable; electrical connection by means of reverse polarity protected plug system; LED board highly reflective lacquered for higher efficiency; light colour 3000 K; binning initial MacAdam Notes Count / Date General Ceiling / Wall , Recessed white , RAL9010 IP40 4020 lm 1 LED 3000 K CRI ≥ 80 L90 / 50000 h photobio. safety RG 0 - no Risk initial MacAdam ≤ 3 SDCM MR 0.54 MDER 0.49 Optical Opal PstLM ≤ 1.0 SVM ≤ 0.4 2 2 Electrical DALI-2 31 W PC1 220-240V 130 lm/W 1 DALI Addr. ≤ 3 SDCM; CRI ≥ 80; min. 90% of luminous flux after 50000 operating hours; energy efficient LEDs with high CRI; flush ceiling light level; completely homogeneously illuminated, satin PMMA cover.

Rectangular recessed multi-downlight made of die-cast aluminium; installation without tools in mounting set due to patented ball catch system; rectangular installation housing; for trimless installation in plasterboard ceilings; suitable for ceiling thickness of 12.5/15/20/25 mm; equipped with six narrow medium round light elements; symmetrical light distribution with precise radiation characteristic, beam angle 22°; high quality reflector with micro-faceted.

A large, high power architectural grade spotlight that combines technology and performance in a modern form factor. Packed with features including EasyGlow™ visual comfort and CoolDrive™ thermal management technologies. PowerSync™ allows for highly granular digital control via common protocols. Unique and flexible mounting with glare control accessories enable installation in multiple orientations. Lighting professionals now have greater creative flexibility with the choice of designer lens options, which provides superb color-over-angle consistency and blending of colors even at close blending distances. Standard LED options are also available for exceptional reach.DIMENSION: 424(L)*62(W)*285(H)mm.
