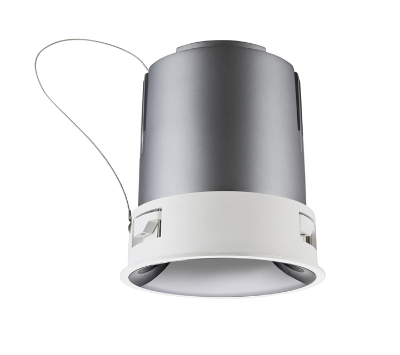

HS6070-M 12W15D


Specification

Power
12W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
695LM
Finishing
ALUMINUM
IP Rating
IP20
Color Rendering
CRI>95
Driver

See more

LINEALIGHT
INGROUND UPLIGHT
OUTDOOR LIGHTING

Single emission uplights for outdoor application. The warm white LED light source with a spot light distribution is composed of 1 powerled LEDs. The luminaire body is made of die-cast aluminium en ab - 46100 and features a black finish, processed by means of open pore anodizing + powder coating; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP68,IK10.

LINEALIGHT
SURFACE MOUNTED DOWNLIGHT
OUTDOOR LIGHTING

Single emission ceiling downlights for outdoor application. The super warm white LED light source with a spot light distribution is composed of 1 arrayled LEDs with CCT of 2700 K and a CRI 80; the source luminous flux is 925 lm, with a 142.3 lm/W nominal luminous efficacy.

The device body is made of die-cast aluminium en ab - 46100 and features a dark brown finish, processed by means of open pore anodizing + powder coating; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP65; the total weight is of 0.528 kg. The power supply driver is not provided and is to be ordered separately.

The total absorbed power is 6.5 W.

The device features protection class III and can be ceiling-mounted.

Compliant with the EN 60598-1 standard and its specific provisions.


LINEALIGHT
PENDANT
INDOOR LIGHTING
Single emission pendant luminaires for indoor application. The warm white LED light source with a diffused light distribution is composed of 288 topled LEDs. The device body is made of aluminium 6060 and features a embossed black ral 9005 finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP40; the total weight is of 5,7 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 5 m length. The device features protection class III and can be ceiling-mounted. Compliant with the EN 60598-1 standard and its specific provisions.
LIGHTFORMS
WALLWASHER
INDOOR LIGHTING
Lightplane 1 Wall Washer Recessed Trim is a small recessed slot light used for wall washing. The luminaire can be installed both vertically and horizontally to form continuous or individual rows. The fixture is available with several LED lamping options including multiple outputs and CCTs, tunable white and colour-changing RGB+White.
