LINEALIGHT

silux wide K has a quartercircle cross-section ideal for cove and shelf lighting. The light distribution is tilted so that can be illuminated widely and efficiently.12×18mm homogeneous crescent section rigid light with wide light distribution 3 different power consumption options to support energy saving project requirement with various length types and accessories ideal for a wide range of applications such as shelf and cove light.

Luminaire surface linear lights that provide a seamless look and clean elegance. These luminaires, by their design hide the fixtures to allow the light itself to play the dominant role. These fixtures are modular and can be extended for desired length without any requirements.

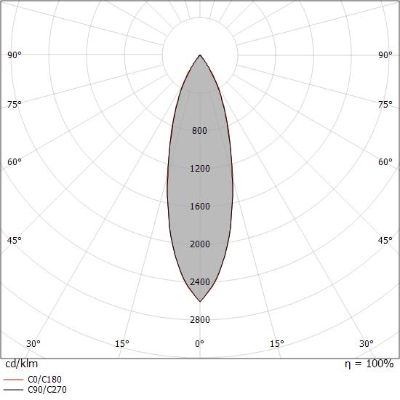

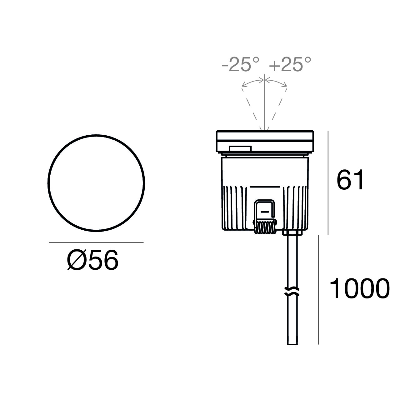

Housing made of corrosion‑resistant die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, dark screenprint, silicon gasket, closure with 2 stainless steel screws, mounting bracket: 1 elongated hole Ø 7 mm, spacing 18 mm, 1 centre hole Ø 8.5 mm, tilt range: 180°, cable gland: M16, connecting terminal: 3 pole, precise PMMA optics, integral driver (AC/DC), CRI > 80, max 2 SDCM, service life L90/B10 > 50.000 h, Beam angle (fwhm): 27°, luminous flux: 510 lm, wattage: 10 W, delivered lumens 51 lm/W, protection type IP67, protection class I, impact resistance IK08, windage area 0,012 m², dimensions: Ø 123 mm, width 87 mm, weight 1.8 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE and ENEC marks. Customized solutions and modifications are possible: Special ral, db or ncs colours as polyester powder coat, luminaires in 2700 K and other colour temperatures and versions for high ambient temperature.
