Specification

Power

15W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

938LM

Finishing

ALUMINUM

IP Rating

IP20

Color Rendering

CRI>95

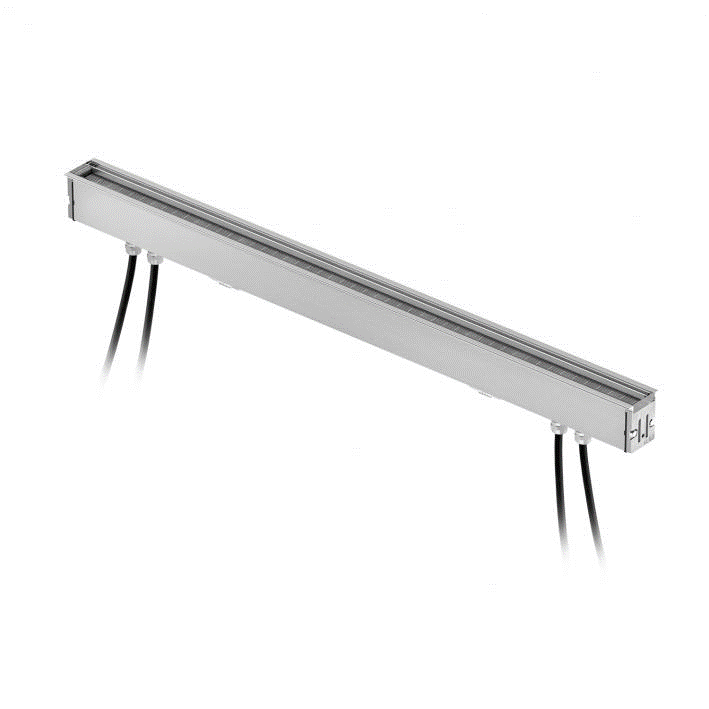

Driver

LINEALIGHT

WALLWASHER

OUTDOOR LIGHTING

Single emission lines for outdoor application. The warm white LED light source with a extra wide flood light distribution is composed of 18 powerled LEDs. The device body is made of aluminium 6060 and features a anodised aluminum finish, processed by means of 20 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP68; the total weight is of 2.500 kg. The power supply cable is included and features a 0.250 m length. The device features protection class II and can be floor-mounted with an outer casing, code 99765 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.

BEGA

BOLLARD

OUTDOOR LIGHTING

Luminaire made of aluminium alloy, aluminium and stainless steel BEGA Unidure® coating technology Safety glass Silicone gasket Reflector made of pure anodised aluminium Luminaire with mounting plate for bolting onto a foundation or an anchorage unit Mounting plate with 3 fixing holes each ø 8.5mm · Pitch circle ø 100mm and ø 132mm. IP65,IK07.

BEGA

FLOODLIGHT

OUTDOOR LIGHTING

Performance floodlight with G½ mounting bush in compact design. The floodlight can be bolted together with any female thread G½ according to ISO 228 supplied by others or to BEGA accessories. Symmetrical wide beam light distribution Half beam angle 46° For special lighting applications, the symmetrical light cone can be changed to a flat beam using an additional diffuser lens. Luminaire made of aluminium alloy, aluminium and stainless steel BEGA Unidure® coating tehnology Clear safety glass Silicone gasket Reflector surface made of pure aluminium Optical silicone lens · BEGA Hybrid Optics® Rotation range of floodlight 350° Swivel range - 30°/+140° Mounting bracket with G½ threaded connection Thread length: 10mm Connecting cable X05BQ-F 5G1mm² Cable length 1m BEGA Ultimate Driver. IP65,IK08.
