CDN LIGHTING

LED lighting module, with low glare, to be inserted in the recessed frames not included, installation through a bayonet system with interchangeable spots. Available in one-light versions and groups of two and four lights. Driver not included, the driver has to be directly connected to the embedding frames.

This recessed LED luminaire offers direct light with high visual comfort and a slim profile. It features a circular aluminium frame, high-purity reflectors, and tempered glass for durability. The sealed internal components ensure watertight performance, while the outer casing supports concrete ceiling installation. With adjustable optics, pass-through wiring, and multiwatt options, this fixture combines flexibility and reliability, finished with corrosion-resistant stainless steel screws.

FUSION FF3

FF3-9304007F-BB

Square recessed ceiling downlight made of die-cast aluminium with black powder-coating finish (RAL 9005) and black reflector; ON-OFF Driver; LED 7W; measurement 98mm x 45mm; ceiling cutout of 90mm x 37mm with a narrow mounting trim; luminaire's weight is approximately 180g; CCT 3000K with an LED Output of 650lm; high color rendering at an index of CRI90; after a lifetime of 50000h min. 80% of the luminous flux with energy efficient OSRAM LED Chips; 5 years warranty; beam characteristic with 40° beam angle; lighting perfectly suitable for reading, writing as well as computer and control work according to DIN EN 12464-1 (UGR<10); degree of housing protection according to DIN EN 60529 (IP20)

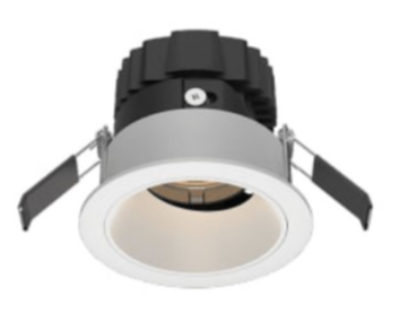

Round recessed spotlight in die-cast aluminium; surface white powder coated; with trim; suitable for ceiling thickness of 2-25 mm; installation without tools using snap spring closure; passive cooling of the LEDs through improved heat sink geometry
