UNILAMP

SPOTLIGHT

OUTDOOR LIGHTING

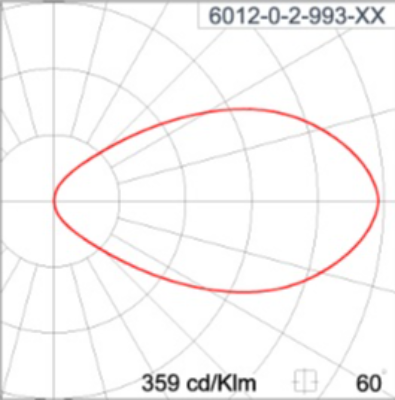

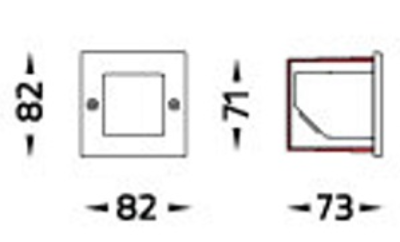

DOT 6012-0-2-993-06

DOT family is a range of small recessed wall luminaires with LED light sources. The glare-free cover enables DOT to be installed where comfortable illumination is required. Fitted with world renowned LED manufacturer DOT is highly efficient with low energy consumption. DOT is available in four different design with interchangeable front covers in both square and round shapes. The very small and shallow housing allow the installation of the fixtures in wall or step that have limited recessing depth. DOT is regularly used to illuminate stairways and pathways where directional low level light is preferred.

Specification

Power

Color Temperature

GREEN

Light Source Type

LED

Lumen Output

75LM

Finishing

WHITE

IP Rating

IP65

Color Rendering

CRI >80

Driver

ON/OFF DRIVER

LINEALIGHT

WALL LIGHT

OUTDOOR LIGHTING

Single emission wall lights for outdoor application. The warm white LED light source with a medium wide flood light distribution is composed of 1 arrayled LEDs. The luminaire body is made of die-cast aluminium en ab - 46100 and features a white finish, processed by means of open pore anodizing + powder coating; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP65, IK08.

LIGHTFORMS

WALL LIGHT

INDOOR LIGHTING

Micro-HB is a clean and compact luminaire that provides both direct and indirect illumination. The slim channel provides for a minimalist-looking aesthetic. Driver is REMOTE.

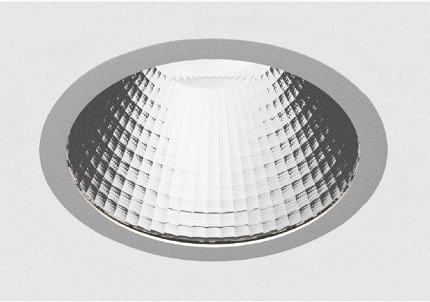

LINEALIGHT

RECESSED DOWNLIGHT

INDOOR LIGHTING

Single emission downlights for indoor application. The warm white LED light source with a flood light distribution is composed of 1 powerled LEDs. The device body is made of aluminium 6026 and features a embossed white ral 9003 finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.047 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.170 m length. The device features protection class III and can be ceiling-mounted, with a 20 mm diameter hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.
