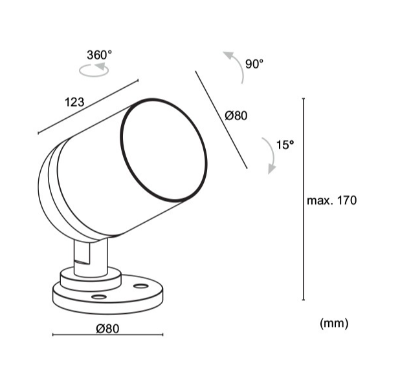

Pivot 3.0, code: CP30001000F0LT

projector for outdoor applications; surface mounted (ceiling, wall, floor), surface mounted (ceiling, wall, ground, spike); Power consumption: 25W;

Power supply: 24Vdc; Lumen output at source: 1890 lm (3000K, CRI 90); Delivered lumen output: 1575 lm (3000K, 13°, CRI 90); 1 COB LED, 2-step

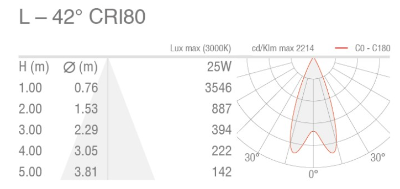

MacAdam, 55 000h L70 B10 (Ta 25°C); LED colour: 2700K; Optics: 42°; CRI Colour Rendering Index: >90

Specification

Power
25W
Color Temperature
2700K
Light Source Type
LED
Lumen Output
1575LM
Finishing
CORTEN
IP Rating
IP66
Color Rendering
CRI 80
Driver
ON/OFF DRIVER

See more

COLORS
LED NEON TUBE
OUTDOOR LIGHTING

Light source：Adopting dedicated and outdoor-specific LED, stronger reliability for outdoor application； Finished product ANSI SDCM≤5； · Structure：New anti-tension structure, Integrated anti-tension silicone extrusion process, against internal stress and external tension； Double-layer circuit conductive, double power supply guarantee, broken boards without power cut.Product applications：outdoor illumination, architectural facade lighting; IP67.

SPARK
TRACKLIGHT
INDOOR LIGHTING

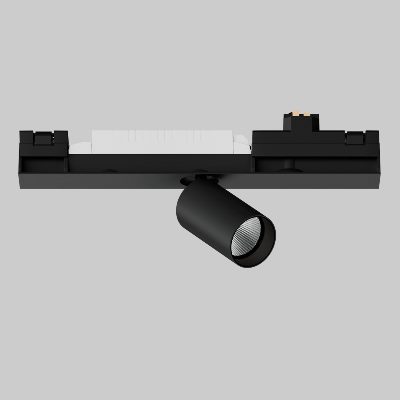

LED Track adjustable linear light system can be flexibly combined with track spotlights on the same track rail for general lighting & accent lighting. Ultra slim delicate design and flexible rotation for wall washing. It come in 3-wire, 4-wire and 6-wire surface / suspension track. Various of beam angle available.

LINEALIGHT
RECESSED DOWNLIGHT
INDOOR LIGHTING
Single emission recessed downlights for indoor application. The super warm white LED light source with a wide flood light distribution is composed of 1 arrayled LEDs. The luminaire body is made of technopolymer and features a white finish; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP20.
LINEALIGHT
CEILING LIGHT
OUTDOOR LIGHTING
Single emission ceiling lights for outdoor application. The warm white LED light source with a spot light distribution is composed of 1 arrayled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed black ral 9005 finish, processed by means of open pore anodizing + powder coating; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP65; the total weight is of 1.35 kg. The power supply driver is not provided and is to be ordered separately. The device features protection class III and can be ceiling-mounted. Compliant with the EN 60598-1 standard and its specific provisions.
