Product Detail
Home Products Detail

Products

LINEALIGHT

INGROUND UPLIGHT
OUTDOOR LIGHTING

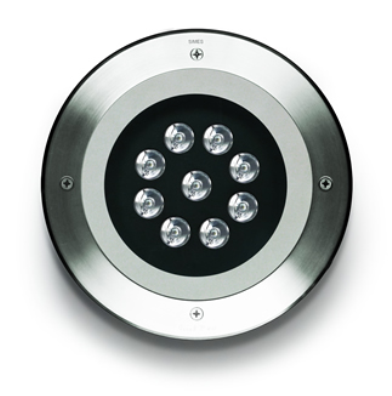

Orma_AJ_20D_12W

Single emission uplights for outdoor application(Adjustable). The super warm white LED light source with a spot light distribution is composed of 1 arrayled LEDs with CCT of 2700K and a CRI 80; the source luminous flux is 2015 lm, with a 167.9 lm/W nominal luminous efficacy.The ingress protection degree is IP68; the total weight is of 0.9 kg. The power supply driver is not provided and is to be ordered separately.


Specification

Power
12W
Color Temperature
2700K
Light Source Type
LED
Lumen Output
1018LM
Finishing
STAINLESS STEEL
IP Rating
IP68
Color Rendering
CRI 80
Driver
ON/OFF DRIVER

See more

SPARK
ADJUSTABLE DOWNLIGHT
INDOOR LIGHTING

Recessed adjustable Oval-hole downlight made of aluminium housing with white powder coated finish. Black finish and honeycomb accessory available upon request.

LINEALIGHT
WALLWASHER
OUTDOOR LIGHTING
Single emission lines for outdoor application. The warm white LED light source with a elliptical light distribution is composed of 11 powerled LEDs. The device body is made of aluminium 6060 and features a anodised black finish, processed by means of 15 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP67; the total weight is of 1.5 kg. The power supply cable is included and features a 0.2 m length. The device features protection class I and can be floor-mounted with an outer casing, code 98724 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.
FORMALIGHTING
ADJUSTABLE DOWNLIGHT
INDOOR LIGHTING

Round shape mounting trim in cast aluminium with springs for trim installation on a ceiling thickness of max. 25mm or brackets for trimless installation on a ceiling thickness 12.5-15mm. Luminaire body in cast aluminium. Easy re-lamping tool-free via removable lamp front ring by twist and lock action. Adjustable version tiltable vertically 0-25° tilt and rotable horizontally 350°. A visual simplicity seamless shape designed for excellent visual comfort versions include full directional light ad

LINEALIGHT
RECESSED DOWNLIGHT
INDOOR LIGHTING
Single emission downlights for indoor application. The warm white LED light source with a narrow spot light distribution is composed of 1 powerled LEDs. The device body is made of aluminium and features a embossed white ral 9003 finish, processed by means of coating. The ingress protection degree is IP40; the total weight is of 0.07 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.12 m length. The device features protection class III and can be ceiling-mounted, with a 46 mm diameter hole (in plasterboard) with an outer casing, code 89374 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.
