FLOS

"Copper Free" Aluminium die cast housing in EN AB-44100 with high resistance against corrosion. Stone wash surface treatment prior to painting process. A4 grade Stainless Steel screws with 2,5-3% molybdenum content which increases the resistance against corrosion. Pre treated Silicone Gaskets. Painting Process : 3 Step Process: 1) Surface treatment with BONDERITE. A heavy metal free chemical surface treatment containing ceramic nano particles giving a cohesive, inorganic and highly dense protective coating. 2) PRE POLYMERIZATION a process of introducing an epoxy primer with excellent characteristics to the paint which also offers very high resistance to oxidation due to its Zinc content. 3) POLYMERIZATION a process with the application of polyester powder with high resistance against UV rays and harsh weather conditions. Resistance test protection for Marine applications for 1200h. Mechanical resistance IK 09 Maximum load capacity 1000 Kg. This luminaire contains built-in LED modules. In case of damage or malfunction please contact the manufacturer to receive additional instructions on how to replace and relative spare parts to order. The LED modules cannot be handled in the luminaire by the end user. This product contains a light source of energy efficiency class: E. LED modules are engineered accordingly to the existing regulations of Lumen Maintenance (LM80) and Technical Memorandum (TM21), where uniformity and quality of the light is 70,000 hours referred to L80 B10 Ta 25 ° C (50,000 hours referable to L80 B10 Ta 40°C). Lifespan of the luminaire min. 50,000 hours at 40°C. Performance Ambient temperature Tq 25°C. Operating ambient temperature range is from -20°C to +50°C. Storage temperature range from -20°C to +60°C.

Fixing base and recessing box in extruded anodized EN AW-6060 aluminium housing (copper free) with high corrosion resistance. Mechanical resistance IK 10 Maximum load capacity 500 Kg. This luminaire contains built-in LED modules. In case of damage or malfunction please contact the manufacturer to receive additional instructions on how to replace and relative spare parts to order. The LED modules cannot be handled in the luminaire by the end user. This product contains a light source of energy efficiency class: G. LED modules are engineered accordingly to the existing regulations of Lumen Maintenance (LM80) and Technical Memorandum (TM21), where uniformity and quality of the light is 70,000 hours referred to L80 B10 Ta 25 ° C (50,000 hours referable to L80 B10 Ta 40°C). Lifespan of the luminaire min. 50,000 hours at 40°C. Performance Ambient temperature Tq 25°C. Operating ambient temperature range is from -20°C to +50°C. Storage temperature range from -20°C to +60°C.

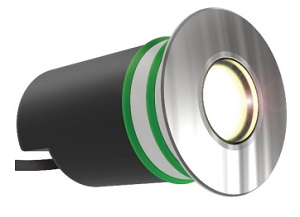

The LS9405LED has been specifi cally engineered for use in fountains and other underwater features. When high output is required, it can be deployed in its full output, 2W confi guration; If a dot of light is required, it can be set as low as 0.2W, (either by the factory or in the fi eld). Alternatively, the luminaire can be dynamically dimmed via Lumascape d5 driver technology. Constructed in part from 316 Marine Grade Stainless Steel, this luminaire also comes with Lumascape proprietary ElectroPolishPlusTM surface treatment as standard. The LS9405LED has been specifi cally engineered for use in fountains and other underwater features. When high output is required, it can be deployed in its full output, 2W confi guration; If a dot of light is required, it can be set as low as 0.2W, (either by the factory or in the fi eld). Alternatively, the luminaire can be dynamically dimmed via Lumascape d5 driver technology. Constructed in part from 316 Marine Grade Stainless Steel, this luminaire also comes with Lumascape proprietary ElectroPolishPlusTM surface treatment as standard.

TA8 + LED Module M3-9303511A-TA8-BBB

Round spotlight for recessed installation made of die-cast aluminium with black powder-coating finish (RAL 9005) and black reflector; 0-10V Dim Driver; LED 11W; measurement Ø85mm; ceiling cutout of Ø75mm with a narrow mounting trim; luminaire's weight is approximately 200g; rotation 355° and pivot max. 18°; CCT 3000K with an LED Output of 1100lm; high color rendering at an index of CRI90; after a lifetime of 50000h min. 80% of the luminous flux with energy ef
