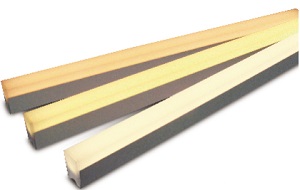

Media Tube® Plus is a slim,diffused view lens, cover lens ( UV resistant polycarbonate 120x180D) luminaire designed to integrate into any wall, facade or media lighting application with tight installation requirements. 18 pixels per 600mm. LED pitch 16.7mm. Media Tube® Plus provides smooth effects to add life and motion to the installation. Featuring Auto-Addressing and simple quick lock connections, Media Tube® Plus is perfect for building façades, media applications, and more.

Aluminium housing adjustable downlight, wide-open shape die-cast aluminium heatsink design to enlarge the heat dissipation area, leading to a high heat dissipation efficiency and long-life on the fixture. Small cut-out diameter 55mm suitable for tiny ceiling.

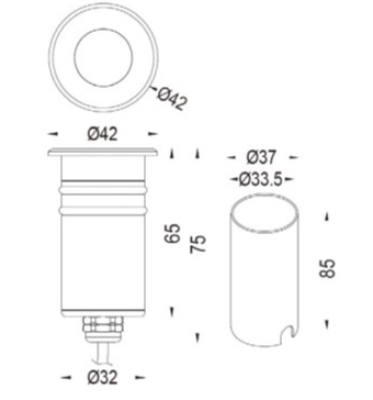

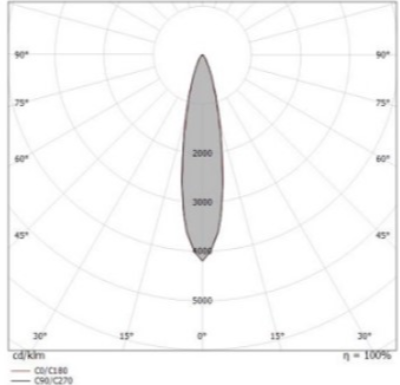

Housing of corrosion‑resistant die‑cast aluminum AlSi12, double polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass flush with frame, anti‑reflective coating from 1 side, dark screenprint, for loads up to max. 5000 kg (according to IEC / EN 60598‑2‑13), silicon gasket, cover frame and closure with 6 stainless steel screws, cable gland: M20, connecting terminal: 3 pole, highly efficient anodized rotationally symmetrical reflector, lockable, tilt range: 0‑15, 0,8 m cable H07RN‑F3G1,5, integral control gear, CRI > 80, max 2 SDCM, service life L90/B10 > 50.000 h, Beam angle (fwhm): 8° / 47°, luminous flux: 369 lm, wattage: 5 W, delivered lumens 72 lm/W, protection type IP67, protection class I, impact resistance IK10, dimensions: Ø 200 mm, width 124 mm, weight 3.3 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE mark.

Max run length (single‑end power feed): 5m

Warranty：5years

indoor,Working life ≥60000 hours;3years semi-outdoor,Working life ≥36000 hours
