APEX

COB STRIP

INDOOR LIGHTING

AC112+A301_2700K

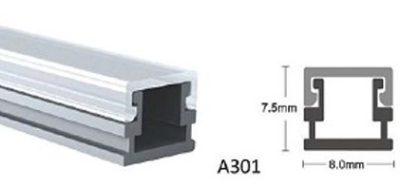

APEX COB LED Strip come with various CCT from 2700K to 6500K, mini PCB,high color rendering index 90. 50,000hrs lifespan. 480LEDs/M. Able to work withdimming and non-dimming driver. Various types of aluminium profiles upon request. IP20 / 65 / 67. DIMENSION : (L)1000mm X (W)8mm, Cutting length 50mm.

Specification

Power

12W/M

Color Temperature

2700K

Light Source Type

LED

Lumen Output

985LM/M

Finishing

WHITE

IP Rating

IP20

Color Rendering

CRI 90

Driver

ON/OFF DRIVER

SIMES

BOLLARD

OUTDOOR LIGHTING

Aluminium die cast housing in EN AB-47100 (low copper content) with high resistance against corrosion. Extruded EN AW-6060 aluminium structure (bollard version) with high corrosion resistance. Stone wash surface treatment prior to painting process. Steel screws treated with an advanced anticorrosive coating. Silicone Gaskets

LINEALIGHT

SURFACE TRACKLIGHT

INDOOR LIGHTING

Single emission ceiling lights for indoor application. The warm white LED light source with a spot light distribution is composed of 1 arrayled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed black ral 9005 finish, processed by means of powder coating. The ingress protection degree is IP20; the total weight is of 0.390 kg. The device features protection class I and can be ceiling-mounted. Compliant with the EN 60598-1 standard and its specific provisions.

LINEALIGHT

RECESSED DOWNLIGHT

INDOOR LIGHTING

Single emission downlights for indoor application. The warm white LED light source with a extra wide flood light distribution is composed of 3 powerled LEDs. The device body is made of aluminium and features a white ral 9010 finish, processed by means of coating. The ingress protection degree is IP45; the total weight is of 0.090 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.12 m length. The device features protection class III and can be ceiling-mounted, with a 35 mm diameter hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.
