LINEALIGHT

SURFACE MOUNTED DOWNLIGHT

OUTDOOR LIGHTING

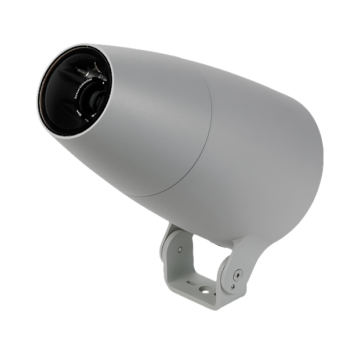

Portik_Q 80618M30

Single emission ceiling lights for outdoor application. The super warm LED light source with a medium flood light distribution is composed of 1 arrayled LEDs with CCT of 2700 K and a CRI 80; the source luminous flux is 770 lm, with a 128.3 lm/W nominal luminous efficacy. The device body is made of die-cast aluminium en ab - 46100 and features a embossed white ral 9003 finish, processed by means of open pore anodizing + powder coating; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP65; the total weight is of 0.675 kg. The total absorbed power is 7.5 W. The device features protection class I and can be ceiling-mounted. Compliant with the EN 60598-1 standard and its specific provisions.

Specification

Power

LED 7.5W

Color Temperature

2700K

Light Source Type

LED

Lumen Output

770LM

Finishing

DIE-CAST ALUMINIUM

IP Rating

IP65

Color Rendering

CRI80

Driver

ON/OFF DRIVER

DGA

DISPLAY LIGHT

INDOOR LIGHTING

Aria is an extension of the Nano Tini collection. The vertical support is available in several heights for the respective functional configurations envisaged: 1, 2 or 3 heads. Every detail has been designed to accommodate the performance of the micro-appliance, the bar rotates 360° vertically. Similarly, the sources can be tilted on the horizontal axis, allowing you to easily direct the light beam on the objects on display, enhancing their magic. The series makes adjustability and compactness it

FLOS

SURFACE MOUNTED DOWNLIGHT

INDOOR LIGHTING

Spotlight to be installed on ceiling with LED light source. 220-240V, 50-60Hz remote power supply included. Construction material Aluminium, IP20

LINEALIGHT

LINEAR DOWNLIGHT

INDOOR LIGHTING

Single emission downlights for indoor application. The warm white LED light source with a asymmetric wallwasher light distribution is composed of 12 powerled LEDs. The device body is made of iron and features a white + black finish, processed by means of powder coating; the diffuser is made of ABS. The ingress protection degree is IP20; the total weight is of 1 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.11 m length. The device features protection class III and can be ceiling-mounted, with a 432 x 42 mm hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.
