LIGMAN

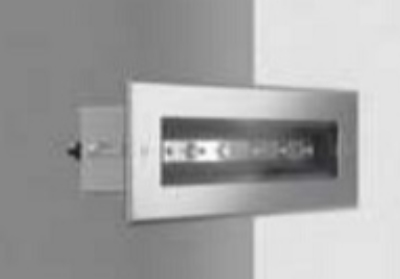

WALL LIGHT

OUTDOOR LIGHTING

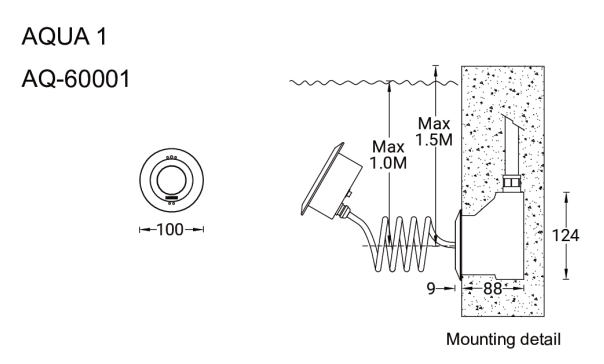

AQ-60001-EW-8040-ND-00

Stainless steel body in grade 316. Single cable entry. One cable gland supplied with 2 m of 2x1.0 sqmm outdoor cable. Stainless steel fasteners in grade 316. Durable silicone rubber gasket. Clear toughened glass. Remote driver is included for constant current (CC) products and is not IP-rated. Remote driver is not included for constant voltage (CV) products. Remote box IP-rated is not included and is to be ordered separately for constant current (CC) products. Recessing box in PVC is included. Luminaire must be submerged when operational. Maximum depth 2 m

Specification

Power

LED 14W

Color Temperature

4000K

Light Source Type

LED

Lumen Output

1354LM

Finishing

STAINLESS STEEL

IP Rating

IP68

Color Rendering

CRI80

Driver

ON/OFF DRIVER

LINEALIGHT

RECESSED DOWNLIGHT

INDOOR LIGHTING

Single emission downlights for indoor application. The warm white LED light source with a medium wide flood light distribution is composed of 1 powerled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a white finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.277 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.170 m length. The device features protection class III and can be ceiling-mounted, with a 70 mm diameter hole (in plasterboard) with an outer casing, code 83064 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.

LINEALIGHT

UNDERWATER LIGHT

OUTDOOR LIGHTING

Single emission submerged for outdoor application. The natural white LED light source with a flood light distribution is composed of 6 powerled LEDs with CCT of 4000 K and a CRI 80; the source luminous flux is 1818 lm, with a 129.9 lm/W nominal luminous efficacy. The device body is made of stainless steel and features a steel finish, processed by means of brushing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP68, IK09.

ELR

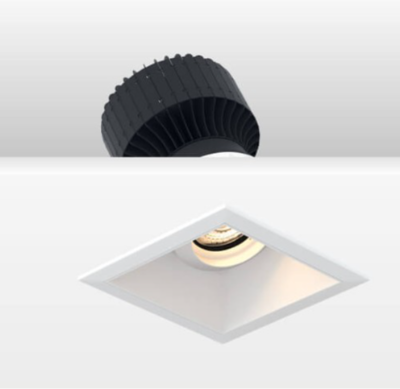

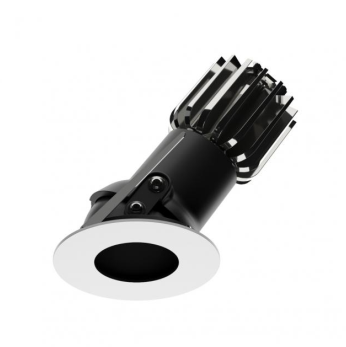

ADJUSTABLE DOWNLIGHT

INDOOR LIGHTING

A series of premium recessed downlights available in various sizes, shapes, and finishing. Paired with ELR’s highly configurable LED modules, the Vasari downlight series offers a high degree of flexibility, aesthetics and functionally for the most discerning of applications.
