LIGMAN

WALL LIGHT

OUTDOOR LIGHTING

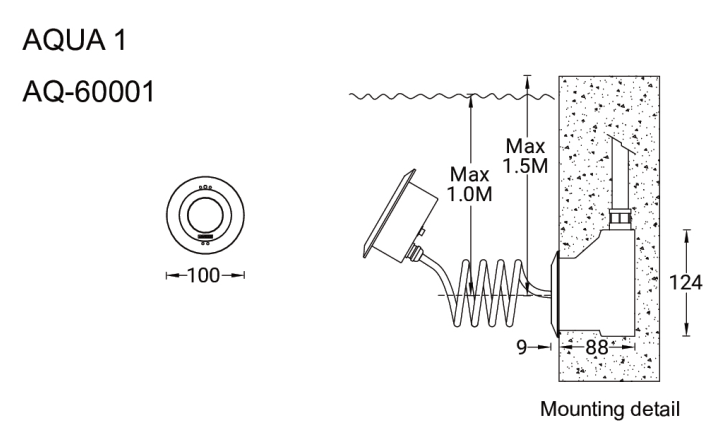

AQ-60001-M-8040-ND-00

Stainless steel body in grade 316. Single cable entry. One cable gland supplied with 2 m of 2x1.0 sqmm outdoor cable. Stainless steel fasteners in grade 316. Durable silicone rubber gasket. Clear toughened glass. Remote driver is included for constant current (CC) products and is not IP-rated. Remote driver is not included for constant voltage (CV) products. Remote box IP-rated is not included and is to be ordered separately for constant current (CC) products. Recessing box in PVC is included. Luminaire must be submerged when operational. Maximum depth 2 m

Specification

Power

LED 14W

Color Temperature

4000K

Light Source Type

LED

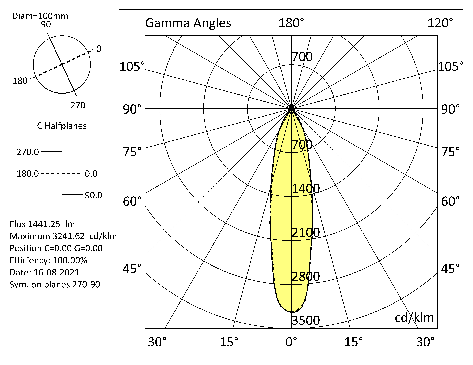

Lumen Output

1441LM

Finishing

STAINLESS STEEL

IP Rating

IP68

Color Rendering

CRI80

Driver

ON/OFF DRIVER

LINEALIGHT

RECESSED DOWNLIGHT

INDOOR LIGHTING

Single emission downlights for indoor application. The warm white LED light source with a medium wide flood light distribution is composed of 1 powerled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed black ral 9005 finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.047 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.170 m length. The device features protection class III and can be ceiling-mounted, with a 46 mm diameter hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.

XAL

RECESSED LINEAR LIGHT

INDOOR LIGHTING

Round light fitting in aluminium; recessed light with wrap around edge; suitable for ceiling thickness of 10-25 mm; surface white powder coated; installation without tools using snap spring closure; external converter for ceiling insertion, through-wiring suitable; electrical connection by means of reverse polarity protected plug system; LED board highly reflective lacquered for higher efficiency; light colour 3000 K; binning initial MacAdam Notes Count / Date General Ceiling / Wall , Recessed white , RAL9010 IP40 4020 lm 1 LED 3000 K CRI ≥ 80 L90 / 50000 h photobio. safety RG 0 - no Risk initial MacAdam ≤ 3 SDCM MR 0.54 MDER 0.49 Optical Opal PstLM ≤ 1.0 SVM ≤ 0.4 2 2 Electrical DALI-2 31 W PC1 220-240V 130 lm/W 1 DALI Addr. ≤ 3 SDCM; CRI ≥ 80; min. 90% of luminous flux after 50000 operating hours; energy efficient LEDs with high CRI; flush ceiling light level; completely homogeneously illuminated, satin PMMA cover.

BEGA

POLE LIGHT

OUTDOOR LIGHTING

Luminaire made of aluminium alloy,aluminium and stainless steel BEGA Unidure® coating technology. Safety glass, antireflection-coated,silicone gasket. Reflector surface made of pure aluminium

for pole top ø 76 m. Inner diameter of the pole min. 62 / max.70mm. Slip fitter insert depth 100mm. Connecting cable X05BQ-F 4×1 mm². Cable length 8m.

SPARK

TRACKLIGHT

INDOOR LIGHTING

Surface mount track spotlight made of die cast aluminium housing and come with different diameter such as Ø55, Ø65, Ø70 and Ø75mm. Wattage from low 6W to 35W max. Fixture finishing available in Black or White color. Wide bean angles are avaiable. IP20
